74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) DECK ASSEMBLY NO. 106-5876 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

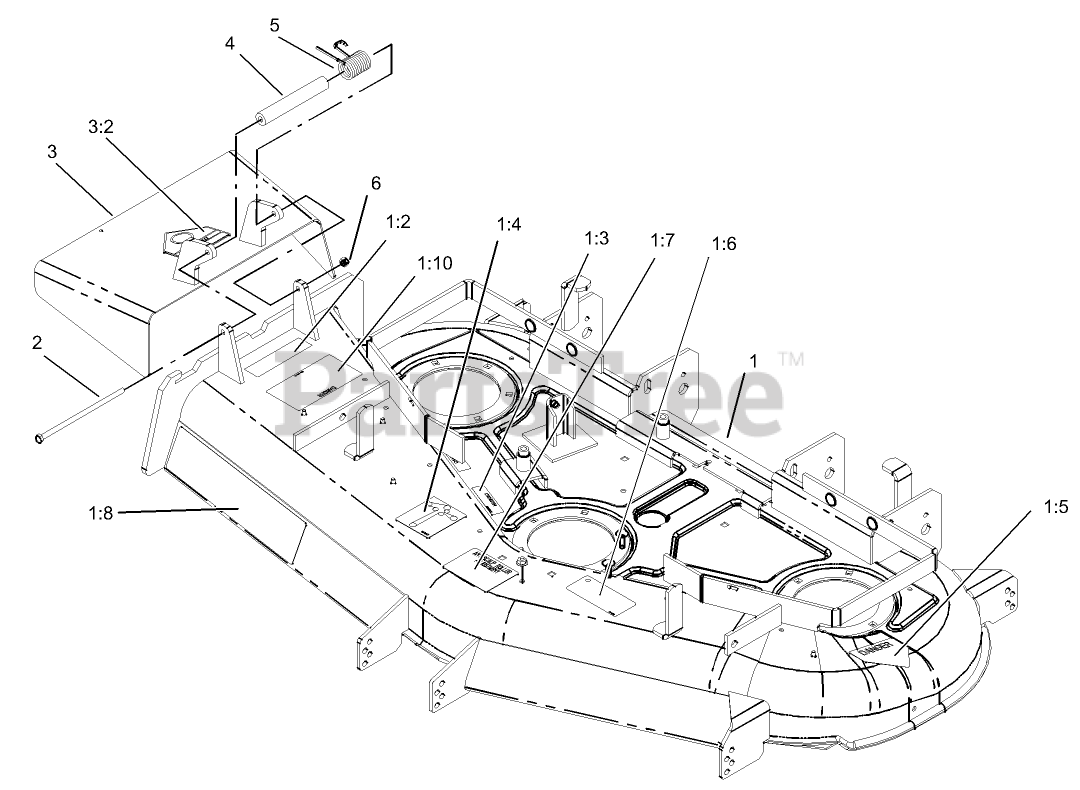

DECK ASSEMBLY NO. 106-5876 Parts Diagram

  • Title

1

Deck ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 104-8569

DECAL-WARNING

$

$

Not available

1:3

Toro 98-5954

DECAL-COVER, MISSING

$9.99

$

In Stock, only 2 left!

0

1:4

Toro 99-3943

DECAL-ROUTING, BELT

$8.49

$

In Stock, only 3 left!

0

1:5

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, Qty 6

0

1:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$12.99

$

Usually ships in 3-6 days

0

1:7

Toro 98-3798

DECAL-WHEEL, GAGE

$19.99

$

Usually ships in 3-6 days

0

1:8

Toro 98-5953

DECAL

$72.99

$

Usually ships in 3-6 days

0

1:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

2

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

3

Toro 105-4623

Deflector ASM

$387.99

$

Usually ships in 3-6 days

0

3:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 11

0

4

Toro 105-4622

SPACER

$11.99

$

In Stock, Qty 6

0

5

Toro 104-8554

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
