74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) PARKING BRAKE SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

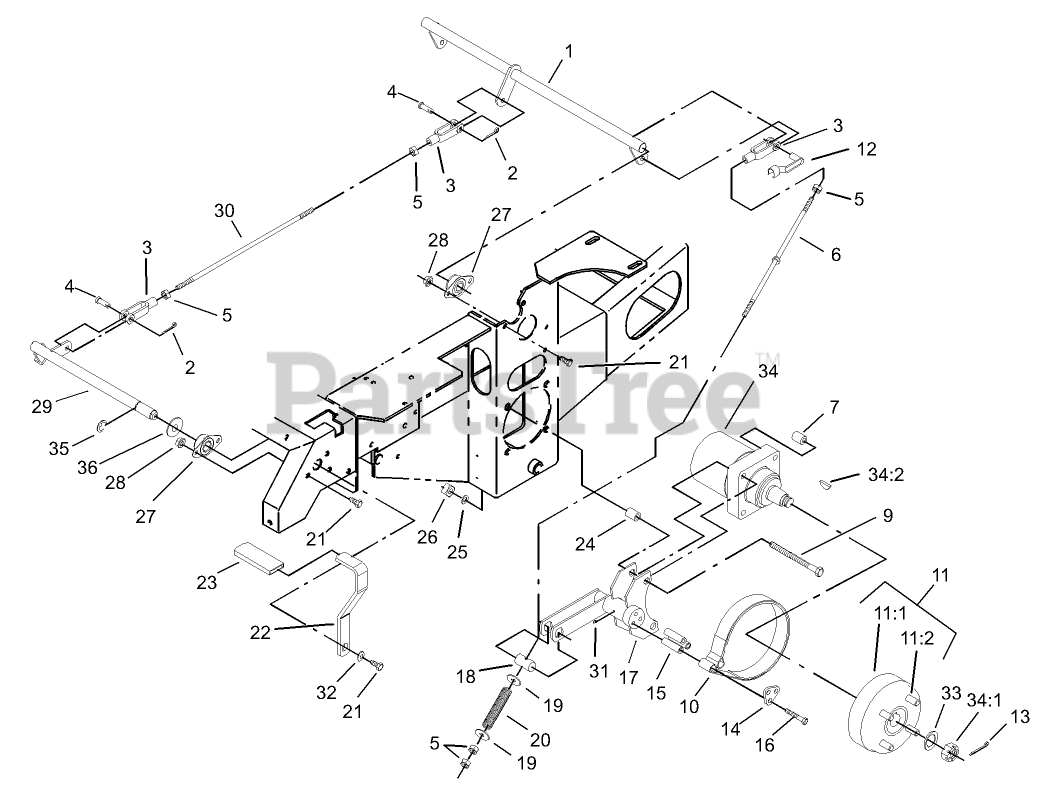

PARKING BRAKE SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 1-652073-03

CRANK-BRAKE, PARK

$

$

Not available

2

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

3

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

0

4

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

5

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

6

Toro 103-0356

ROD-BRAKE

$72.99

$

Usually ships in 3-6 days

0

7

Toro 1-653068

SPACER-WHEEL

$13.99

$

Usually ships in 3-6 days

0

9

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

10

Toro 103-0355

BAND-BRAKE

$58.99

$

In Stock, only 4 left!

0

11

Toro 103-0590

WHEEL HUB ASM

$182.99

$

In Stock, Qty 8

0

11:1

Toro 103-0589

HUB-WHEEL

$173.99

$

In Stock, only 3 left!

0

11:2

Toro 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

12

Toro 103-2399

Pin-Spring, Clevis

$6.49

$

In Stock, Qty 11

0

13

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

14

Toro 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 4 left!

0

15

Toro 103-0384

SPACER

$1.99

$

In Stock, Qty 6

0

16

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

17

Toro 103-0352-03

BRACKET-BRAKE

$217.99

$

Usually ships in 3-6 days

0

18

Toro 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

19

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Toro 1-633454

SPRING-BRAKE

$10.99

$

In Stock, only 1 left!

0

21

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

22

Toro 1-653074-03

HANDLE-BRAKE, PARK

$58.99

$

Usually ships in 3-6 days

0

23

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

24

Toro 1-653069

SPACER-WHEEL

$12.99

$

Usually ships in 3-6 days

0

25

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Toro 103-0131

NUT-SQUARE

$6.49

$

In Stock, Qty 17

0

27

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

28

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Toro 103-3116

Shaft-Brake, Parking

$99.99

$

Usually ships in 3-6 days

0

30

Toro 1-653061

LINKAGE-HANDLE, BRAKE

$21.99

$

In Stock, only 1 left!

0

31

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

32

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

33

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-523328

MOTOR-WHEEL

$1375.99

$

Usually ships in 3-6 days

0

34:1

Toro 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

34:2

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

34:99

Toro 1-000099

SEAL KIT
(Superseded to 103-6994)

Note: Not illustrated

$330.99

$

Usually ships in 3-6 days

0

34:99

Toro 1-000139

BEARING KIT

Note: Not illustrated

$

$

Not available

34:99

Toro 103-2748

Drive Link Kit

Note: Not illustrated

$337.99

$

Usually ships in 3-6 days

0

35

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

36

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0
