74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) HEIGHT OF CUT ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

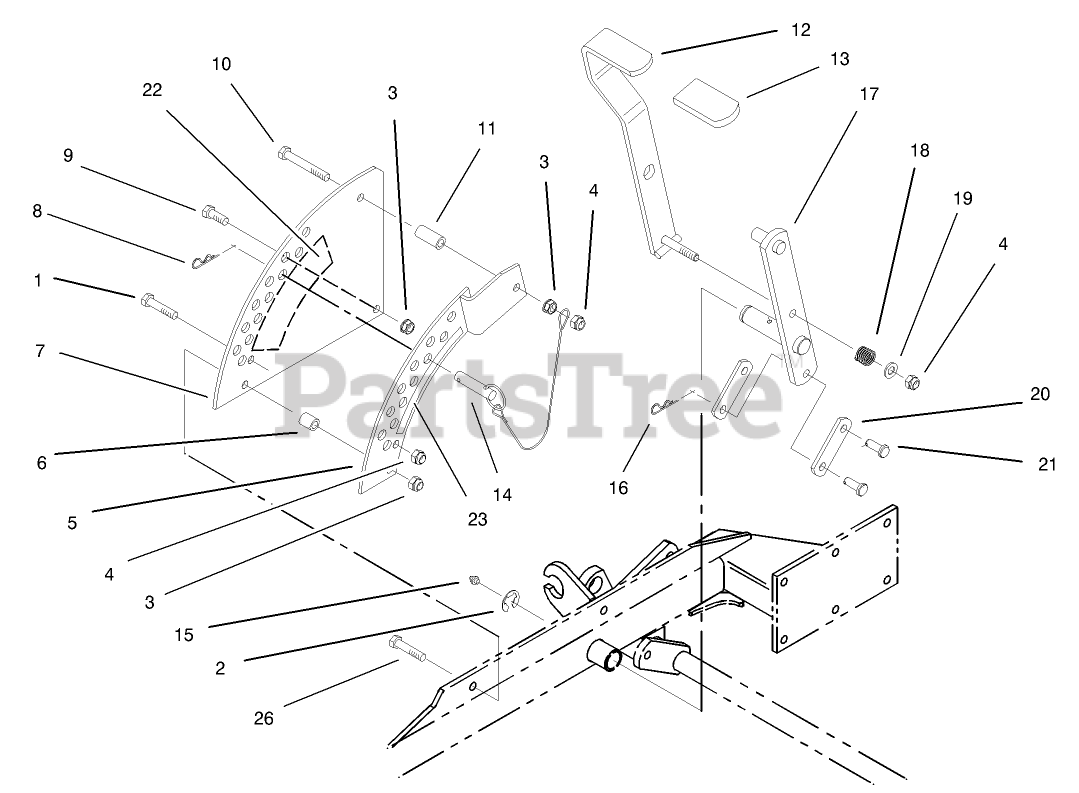

HEIGHT OF CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 1-652235-01

PLATE-LIFT, DECK

$

$

Not available

6

Toro 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 1-653230-01

PLATE-LIFT, DECK

$

$

Not available

8

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

11

Toro 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

12

Toro 103-2078-03

HANDLE-LIFT

$68.99

$

Usually ships in 3-6 days

0

13

Toro 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, Qty 12

0

14

Toro 1-633097

PIN-HITCH (W/LANYARD)

$24.99

$

In Stock, only 2 left!

0

15

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 99-3922-03

ARM-LIFT

$

$

Not available

18

Toro 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

21

Toro 1-808284

PIN-CLEVIS

$3.49

$

In Stock, Qty 20+

0

22

Toro 1-653140

DECAL-DECK HEIGHT, OUTER

$11.99

$

In Stock, Qty 5

0

23

Toro 1-653147

DECAL-DECK HEIGHT, INNER

$5.99

$

In Stock, Qty 8

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
