74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) DECK AND WHEEL GAGE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

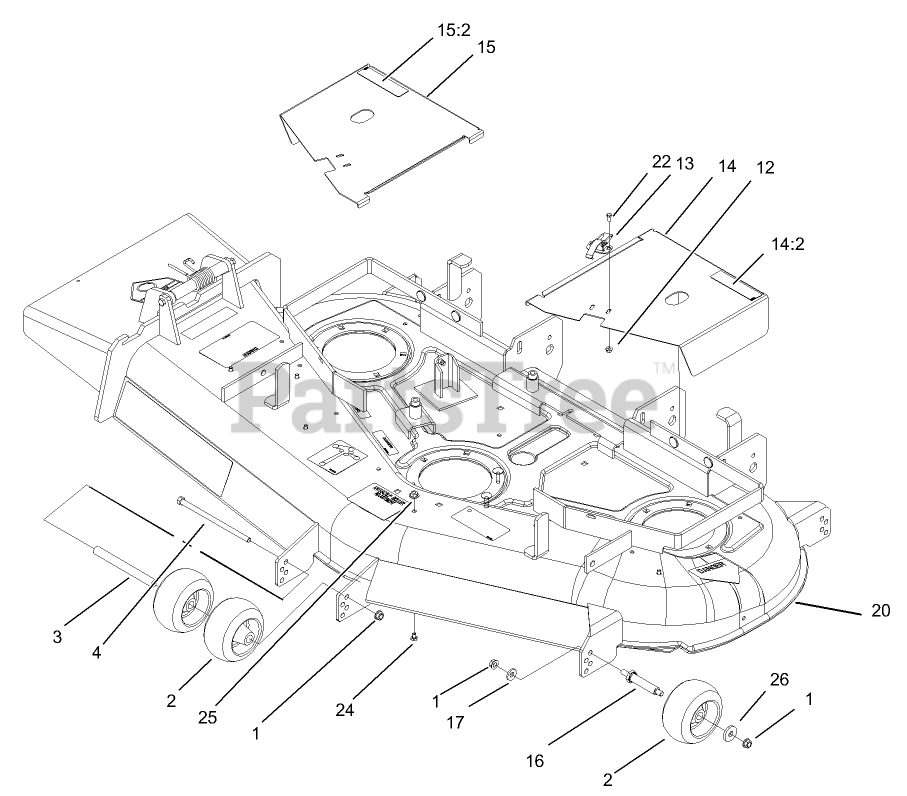

DECK AND WHEEL GAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 20+

0

3

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

4

Toro 323-28

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

13

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

14

Toro 99-3896

LH COVER ASM

$173.99

$

Usually ships in 3-6 days

0

14:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

15

Toro 99-3895

RH COVER ASM

$

$

Not available

15:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

16

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 20+

0

17

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

20

Toro 106-5876

Deck ASM

$

$

Not available

22

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

24

Toro 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0
