74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220000312) (2002) PUMP, IDLER AND BELT ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

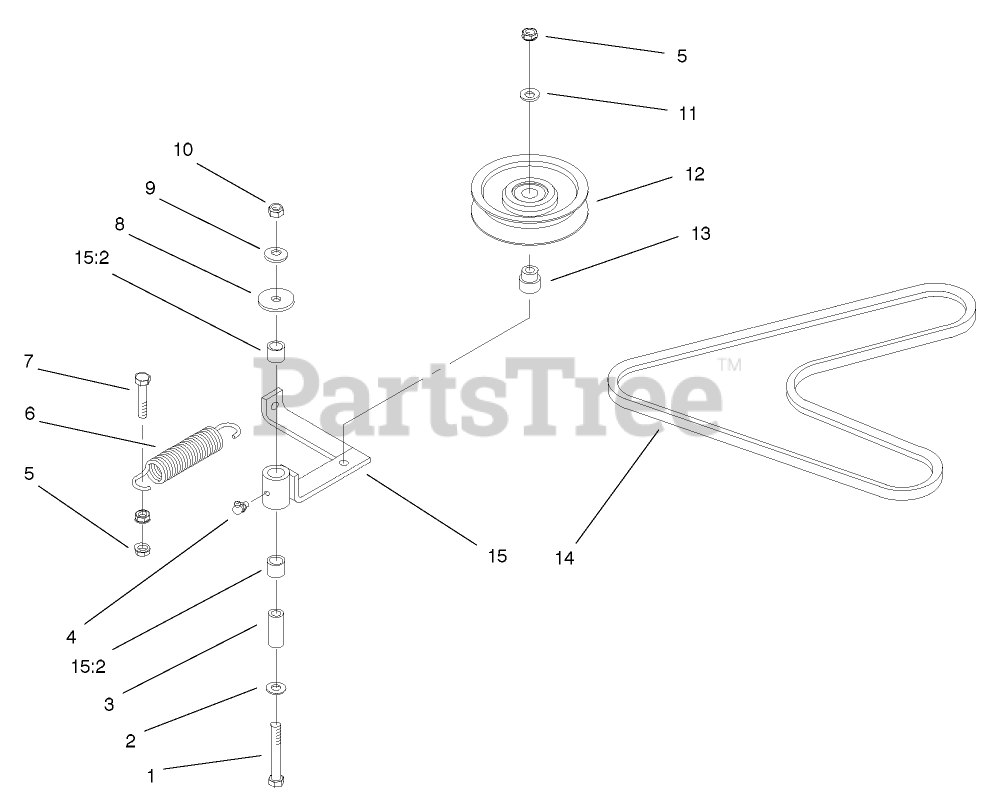

PUMP, IDLER AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

4

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

6

Toro 103-1767

Spring-Extension

$17.99

$

In Stock, Qty 7

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 20+

0

13

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

14

Toro 1-653283

BELT-PUMP

$56.99

$

In Stock, only 3 left!

0

15

Toro 1-654143

ARM-IDLER
(Superseded to 103-4790)

$209.99

$

Usually ships in 3-6 days

0

15:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0
