74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220000312) (2002) GROUP 4-HEAD/VALVE/BREATHER ASSEMBLY KOHLER CV20S-PS65585 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

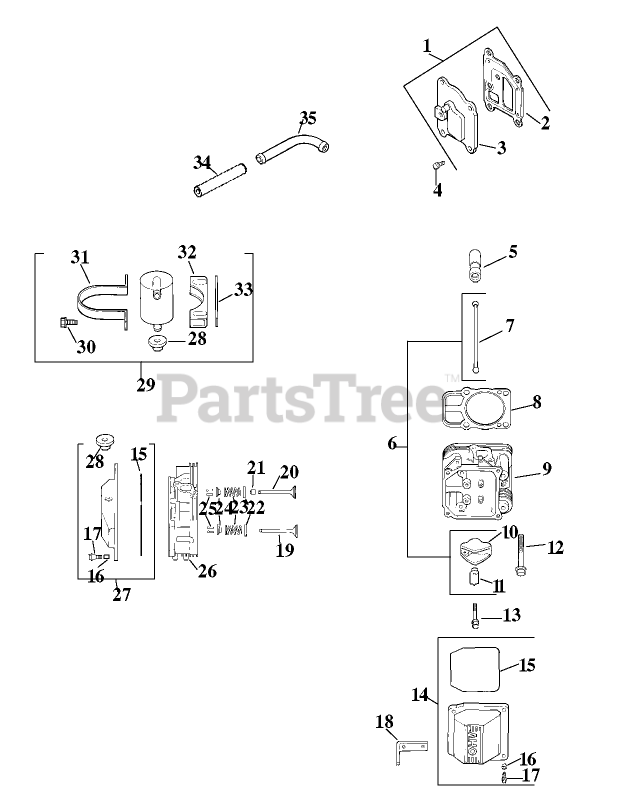

GROUP 4-HEAD/VALVE/BREATHER ASSEMBLY KOHLER CV20S-PS65585 Parts Diagram

  • Title

1

Kohler 24 033 03-S

Kit, breather cover w/gasket (Includes 2, 3)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 23-S

Gasket-Breather
(Superseded to 24 041 67-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 9

0

3

Kohler 24 096 59-S

Cover, breather
(Superseded to 24 033 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, only 1 left!

0

4

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

5

Kohler 25 351 01-S

Lifter-Valve
(Superseded to 25 351 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$23.99

$

In Stock, only 4 left!

0

6

Kohler 24 755 66-S

Kit, valve train (Includes 8, 11, 12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$45.99

$

In Stock, only 3 left!

0

7

Kohler 24 411 05-S

ROD-PUSH

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, Qty 9

0

8

Kohler 24 041 08-S

Gasket-Head, Cylinder
(Superseded to 24 841 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$45.99

$

Usually ships in 2-5 days

0

9

Kohler 24 318 12-S

Head assembly, #2 cylinder
(Superseded to 24 318 70-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$240.99

$

Usually ships in 2-5 days

0

10

Kohler 25 186 01-S

ARM-ROCKER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, only 2 left!

0

11

Kohler 24 599 01-S

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

12

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 5

0

13

Kohler M-640034-S

SCREW-FLANGE (M6X1.0X34)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 18

0

14

Kohler 24 755 75-S

Kit, valve cover plain (Includes 15-17)
(Superseded to 24 755 140-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$36.99

$

In Stock, only 1 left!

0

15

Kohler 24 153 16-S

O-Ring
(Superseded to 24 153 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

In Stock, only 2 left!

0

16

Kohler 24 112 08-S

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

17

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

Kohler 24 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 4 left!

0

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 3 left!

0

20

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$30.99

$

In Stock, Qty 17

0

Kohler 24 017 02-S

VALVE-INTAKE (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler 24 032 05-S

Seal-Stem, Valve
(Superseded to 66 032 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, only 2 left!

0

22

Kohler 235011-S

RETAINER-SPRING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

23

Kohler 24 089 02-S

SPRING-VALVE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

In Stock, only 2 left!

0

24

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.49

$

In Stock, Qty 5

0

25

Kohler 12 755 03-S

RETAINER KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 2 left!

0

26

Kohler 24 318 11-S

Head assembly, #1 cylinder
(Superseded to 24 318 67-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$240.99

$

Usually ships in 2-5 days

0

27

Kohler 24 755 76-S

Kit, valve cover-breather (Includes 15-17, 28)
(Superseded to 24 755 142-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$38.99

$

In Stock, only 1 left!

0

28

Kohler 25 313 02-S

Grommet, rubber
(Superseded to 25 313 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, only 3 left!

0

29

Kohler 24 755 57-S

Kit, breather separator (Includes 30, 32-35)
(Superseded to 24 755 241-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

In Stock, Qty 7

0

30

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

31

Kohler 24 445 02-S

STRAP-BREATHER
(Superseded to 24 755 241-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

In Stock, Qty 7

0

32

Kohler 24 126 44-S

BRACKET-SEPARATOR, BREATHER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

Usually ships in 2-5 days

0

33

Kohler 24 112 12-S

Spacer
(Superseded to 24 755 241-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

In Stock, Qty 7

0

34

Kohler 24 294 01-S

ELBOW

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

Usually ships in 2-5 days

0

35

Kohler 24 326 54-S

Hose-Breather
(Superseded to 24 326 63-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 2 left!

0
