74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220000312) (2002) FRONT FRAME ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

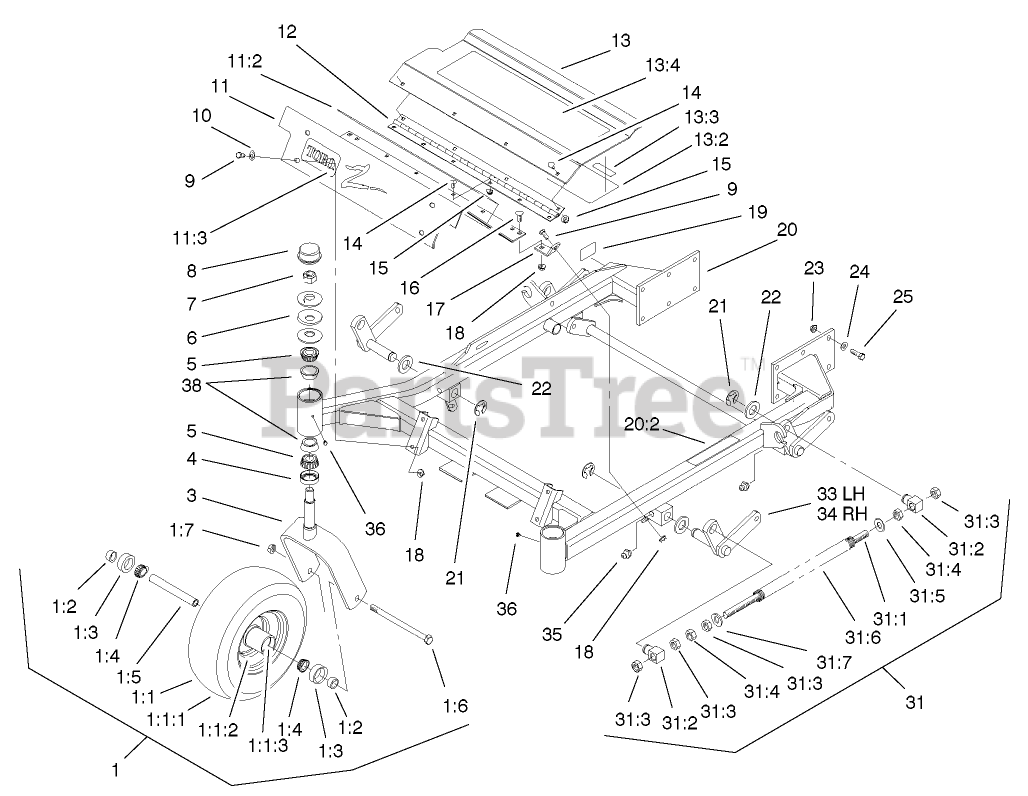

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 1-634662

CASTER WHEEL ASM

$246.99

$

In Stock, only 2 left!

0

1:1

Toro 1-633582

WHEEL and TIRE ASM

$153.99

$

In Stock, only 1 left!

0

1:1:1

Toro 1-633002

TIRE

$99.99

$

Usually ships in 3-6 days

0

1:1:2

Toro 1-633583

WHEEL

$108.99

$

Usually ships in 3-6 days

0

1:1:3

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

1:2

Toro 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 20+

0

1:3

Toro 1-633580

SEAL-BEARING

$9.49

$

In Stock, Qty 8

0

1:4

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

1:5

Toro 1-633579

SPACER-CASTER, FRONT

$14.99

$

In Stock, only 2 left!

0

1:6

Toro 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

1:7

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

3

Toro 1-632511-01

CASTER
(Superseded to 116-8883)

$155.99

$

In Stock, only 4 left!

0

4

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

5

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

6

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

8

Toro 1-543513

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 99-3940

FLOORPAN-FRONT

$

$

Not available

11:2

Toro 1-633553

PAD-ANTISKID

$13.99

$

In Stock, only 4 left!

0

11:3

Toro 1-633737

DECAL

$51.99

$

Usually ships in 3-6 days

0

12

Toro 1-653049

HINGE-FLOORPAN

$49.99

$

Usually ships in 3-6 days

0

13

Toro 99-3930

FOOTREST ASM

$241.99

$

Usually ships in 3-6 days

0

13:2

Toro 99-3924

DECAL-SERVICE

$

$

Not available

13:3

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

13:4

Toro 1-633553

PAD-ANTISKID

$13.99

$

In Stock, only 4 left!

0

14

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

15

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 99-3870-01

BRACKET-FLOORPAN

$

$

Not available

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 105-2625

DECAL-STD, SAFETY

$

$

Not available

20

Toro 99-3931

FRONT FRAME ASM
(Superseded to 106-6581)

$

$

Not available

20:2

Toro 1-633818

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

21

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

22

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

23

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 103-1987

Front Spring ASM

$88.99

$

In Stock, only 1 left!

0

31:1

Toro 1-653011

ROD-LIFT, DECK

$25.99

$

Usually ships in 3-6 days

0

31:2

Toro 1-633441

SWIVEL-DECK MOUNT, REAR

$27.99

$

Usually ships in 3-6 days

0

31:3

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

31:4

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

31:5

Toro 1-805517

Washer

$

$

Not available

31:6

Toro 1-653009

SPRING-COMPRESSION

$17.99

$

Usually ships in 3-6 days

0

31:7

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

33

Toro 99-3871-01

LH LIFT ARM ASM

$140.99

$

Usually ships in 3-6 days

0

34

Toro 99-3872-01

RH LIFT ARM ASM

$143.99

$

Usually ships in 3-6 days

0

35

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

36

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

38

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0
