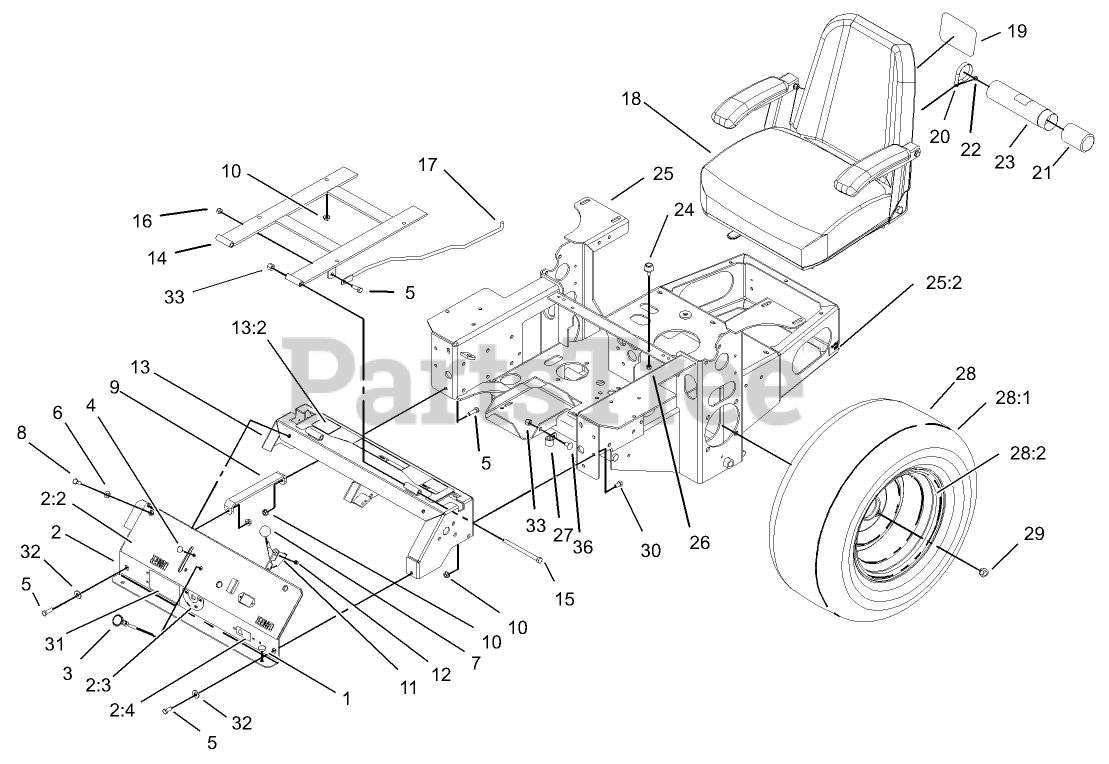

74177 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) MAIN FRAME ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 20+

0

2

Toro 106-6589

CONSOLE ASM

$

$

Not available

2:2

Toro 106-6586

DECAL-PANEL, CONTROL

$

$

Not available

2:3

Toro 103-0262

DECAL-VALVE, FUEL

$6.99

$

In Stock, Qty 8

0

2:4

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

3

Toro 103-3085

Control-Choke

$42.99

$

Usually ships in 3-6 days

0

4

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 1-653089-03

BRACKET
(Superseded to 103-7935-03)

$

$

Not available

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 103-3086

Control-Throttle

$54.99

$

Usually ships in 3-6 days

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 105-6123

CONSOLE FRAME ASM

$

$

Not available

13:2

Toro 103-1997

DECAL-CONSOLE, TOP

$

$

Not available

14

Toro 1-632187-03

FRAME-SEAT
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

15

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 103-1731

ROD-RETAINER, SEAT

$21.99

$

In Stock, only 1 left!

0

18

Toro 1-633705

SEAT ASM

$1406.99

$

Usually ships in 3-6 days

0

19

Toro 99-4693

DECAL

$25.99

$

In Stock, Qty 10

0

20

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

21

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0

22

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

24

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

25

Toro 105-3649

Main Frame ASM
(Superseded to 114-1208)

$2101.99

$

Usually ships in 3-6 days

0

25:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

28

Toro 1-653010

WHEEL AND TIRE ASM

$484.99

$

Usually ships in 3-6 days

0

28:1

Toro 1-653160

TIRE
(Superseded to 116-5363)

$210.99

$

Usually ships in 3-6 days

0

28:2

Toro 1-653158

WHEEL

$182.99

$

Usually ships in 3-6 days

0

29

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 5

0

30

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 99-4604

DECAL

$

$

Not available

32

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0
