74177 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230007000) (2003) FUEL SYSTEM ASSEMBLY KOHLER CV20S PRO 65593 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

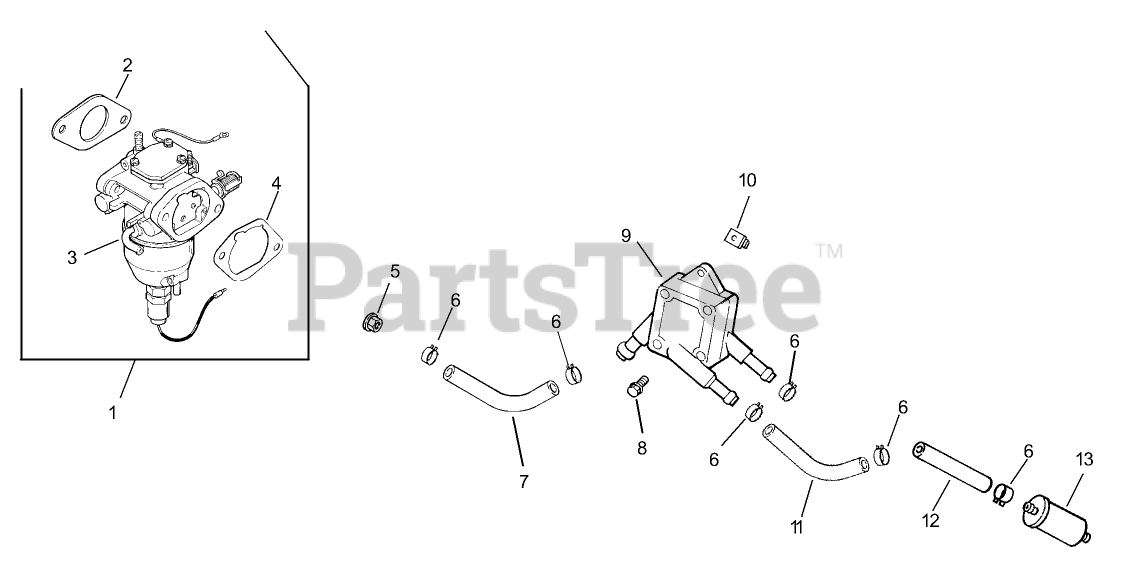

FUEL SYSTEM ASSEMBLY KOHLER CV20S PRO 65593 Parts Diagram

  • Title

1

Kohler 24 853 99-S

Kit, carburetor w/gaskets (Includes 2-4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$665.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

Gasket-carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 1 left!

0

3

Toro 24 053 99

Carburetor assembly (For information only not available separately)(Service with kits 24 234 02-S, 24 757 18-S, 24 757 19-S, 24 757 20-S, 24 757 21-S and 24 757 22-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

4

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 9

0

5

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 11

0

6

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

7

Kohler 25 353 04-S

Line, fuel 6-1/4

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

Usually ships in 2-5 days

0

8

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler 24 393 16-S

PUMP-FUEL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, only 2 left!

0

10

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

11

Kohler 24 353 03-S

Line, fuel 10-1/2
(Superseded to 24 353 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 52 353 22-S

Line, fuel 12"
(Superseded to 25 111 81-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, Qty 7

0

13

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

Kohler 24 234 02-S

Bowl-float

Note: Call PartsTree Customer Service for more information on Kohler Parts

$137.99

$

Usually ships in 2-5 days

0

Kohler 24 234 02-S

Bowl-float

Note: Not illustrated

$137.99

$

Usually ships in 2-5 days

0

Kohler 24 431 01-S

Sleeve-Insulating
(Superseded to 24 431 02-S)

Note: Not illustrated

$6.49

$

In Stock, only 1 left!

0

Kohler 24 431 01-S

Sleeve-Insulating
(Superseded to 24 431 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

Kohler 24 757 18-S

Overhaul w/gaskets Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$79.99

$

In Stock, only 2 left!

0

Kohler 24 757 18-S

Overhaul w/gaskets Kit

Note: Not illustrated

$79.99

$

In Stock, only 2 left!

0

Kohler 24 757 19-S

Choke Service Repair Kit

Note: Not illustrated

$153.99

$

In Stock, only 1 left!

0

Kohler 24 757 19-S

Choke Service Repair Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$153.99

$

In Stock, only 1 left!

0

Kohler 24 757 20-S

Gasket Service Repair Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

In Stock, only 1 left!

0

Kohler 24 757 20-S

Gasket Service Repair Kit

Note: Not illustrated

$62.99

$

In Stock, only 1 left!

0

Kohler 24 757 21-S

accelerator pump w/gaskets Kit

Note: Not illustrated

$120.99

$

In Stock, only 1 left!

0

Kohler 24 757 21-S

accelerator pump w/gaskets Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$120.99

$

In Stock, only 1 left!

0

Kohler 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Not illustrated

$217.99

$

In Stock, only 2 left!

0

Kohler 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$217.99

$

In Stock, only 2 left!

0
