74177 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) STARTING SYSTEM ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

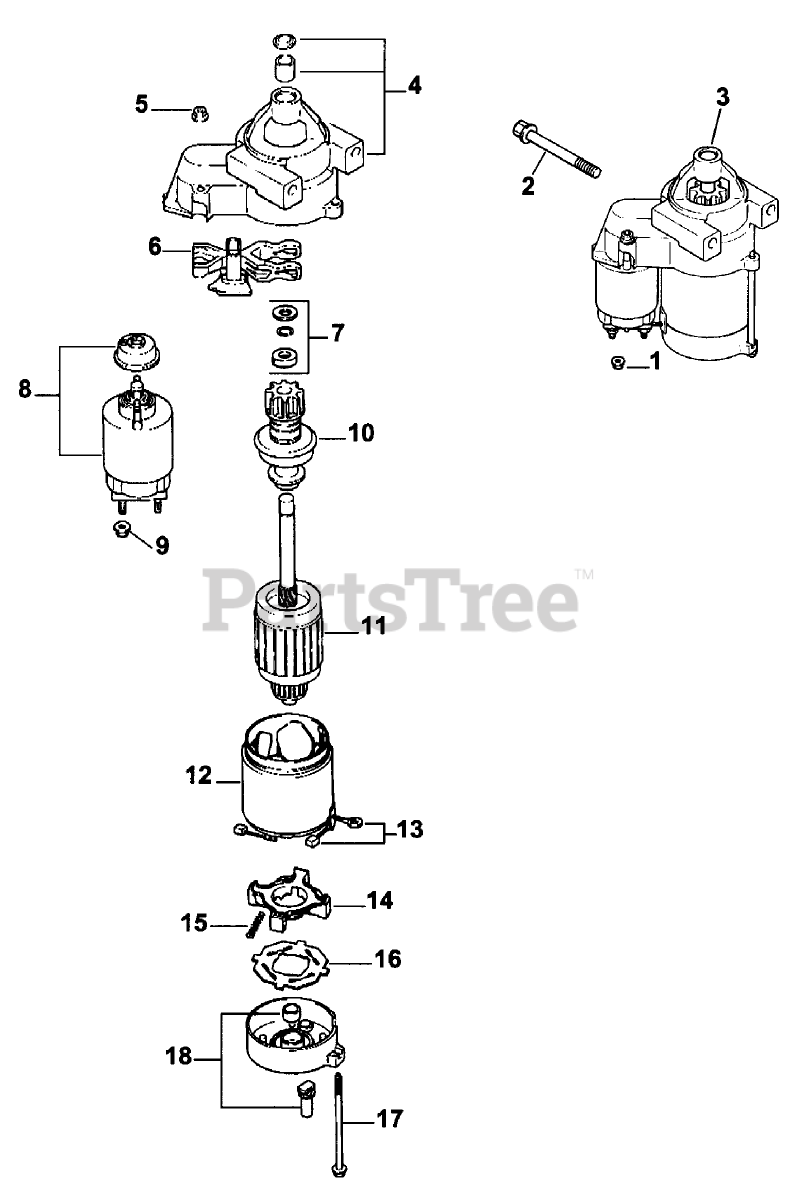

STARTING SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

2

Kohler M-0839080

Scew

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1209803

Starter, solenoid shift (Includes 4-18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1208102

Cap Drive End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

5210010

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1209010

Lever Starter Drive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

2475584

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

5243502

Solenoid

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

5210009

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1223901

Drive Pinion

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

1217003

Armature

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1247101

Frame

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

5222101

Kit, brush (Includes 15)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

5232303

Holder-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

5208909

Spring Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

5216801

Insulator

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

5221105

Bolt

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

1230101

Cap-Commutator End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
