74177 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

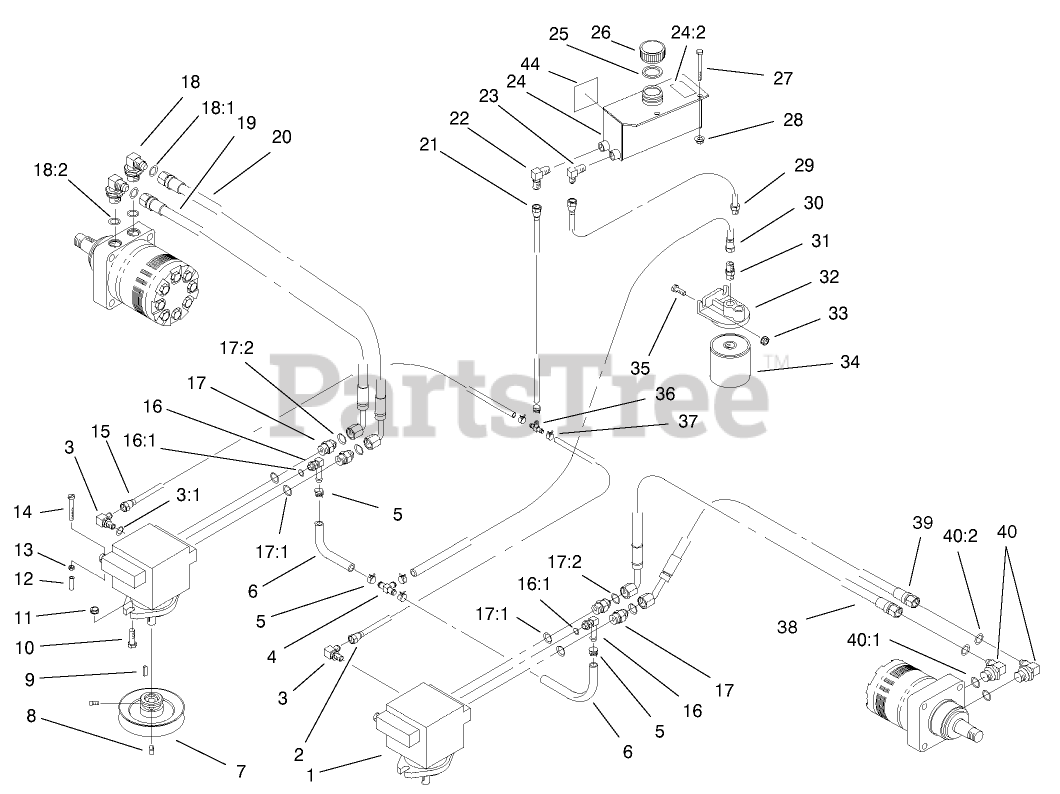

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 1-603841

PUMP-HYDRAULIC
(Superseded to 103-2766)

Note: Not illustrated

$1568.99

$

Usually ships in 3-6 days

0

1

Toro 80-6130

SEAL KIT

Note: Not illustrated

$86.99

$

In Stock, Qty 6

0

2

Toro 1-632285

HOSE ASM

$45.99

$

In Stock, only 3 left!

0

3

Toro 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

3:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

4

Toro 1-603721

FITTING-TEE, HOSE

$26.99

$

Usually ships in 3-6 days

0

5

Toro 1-603827

CLAMP-HOSE

$2.99

$

In Stock, only 4 left!

0

6

Toro 1-413273

HOSE

$14.99

$

In Stock, only 1 left!

0

7

Toro 1-653156

PULLEY

$68.99

$

In Stock, only 3 left!

0

8

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 18

0

9

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-613073

GRIP-VALVE, DUMP

$5.99

$

Usually ships in 3-6 days

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 1-801063

SCREW

$5.49

$

Usually ships in 3-6 days

0

15

Toro 1-632286

HOSE ASM

$28.99

$

In Stock, only 3 left!

0

16

Toro 1-603989

FITTING

$38.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

17

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 12

0

17:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

17:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-633605

FITTING-HYD, 90 DEG

$49.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

18:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

19

Toro 1-653186

HOSE-FRONT

$82.99

$

In Stock, only 1 left!

0

20

Toro 1-653187

HOSE-REAR, RH

$83.99

$

In Stock, only 3 left!

0

21

Toro 1-654144

HOSE

Note: Not illustrated

$63.99

$

Usually ships in 3-6 days

0

22

Toro 1-603987

FITTING-ELBOW

$21.99

$

Usually ships in 3-6 days

0

23

Toro 1-603988

FITTING-ELBOW

$23.99

$

Usually ships in 3-6 days

0

24

Toro 99-4625

HYDRAULIC TANK ASM

$

$

Not available

24:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0

25

Toro 1-523103

GASKET-CAP, TANK

$7.49

$

In Stock, Qty 5

0

26

Toro 1-513167

CAP

$28.99

$

In Stock, only 4 left!

0

27

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 1-654320

HOSE

Note: Not illustrated

$57.99

$

In Stock, only 1 left!

0

30

Toro 1-654509

HOSE

Note: Not illustrated

$76.99

$

Usually ships in 3-6 days

0

31

Toro 1-513510

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

32

Toro 1-603720

HEAD-FILTER

$

$

Not available

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 20+

0

34

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 3 left!

0

35

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 1-603722

FITTING-TEE, HOSE

$25.99

$

Usually ships in 3-6 days

0

37

Toro 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

38

Toro 1-653409

HOSE,HYDRAULIC

Note: Not illustrated

$112.99

$

Usually ships in 3-6 days

0

39

Toro 1-653410

HOSE,HYDRAULIC

Note: Not illustrated

$112.99

$

Usually ships in 3-6 days

0

40

Toro 1-633786

FITTING-90 DEG

Note: Not illustrated

$

$

Not available

40:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

40:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

44

Toro 104-8172

DECAL-MOBIL 1

$

$

Not available
