74177 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) HEAD/VALVE/BREATHER ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

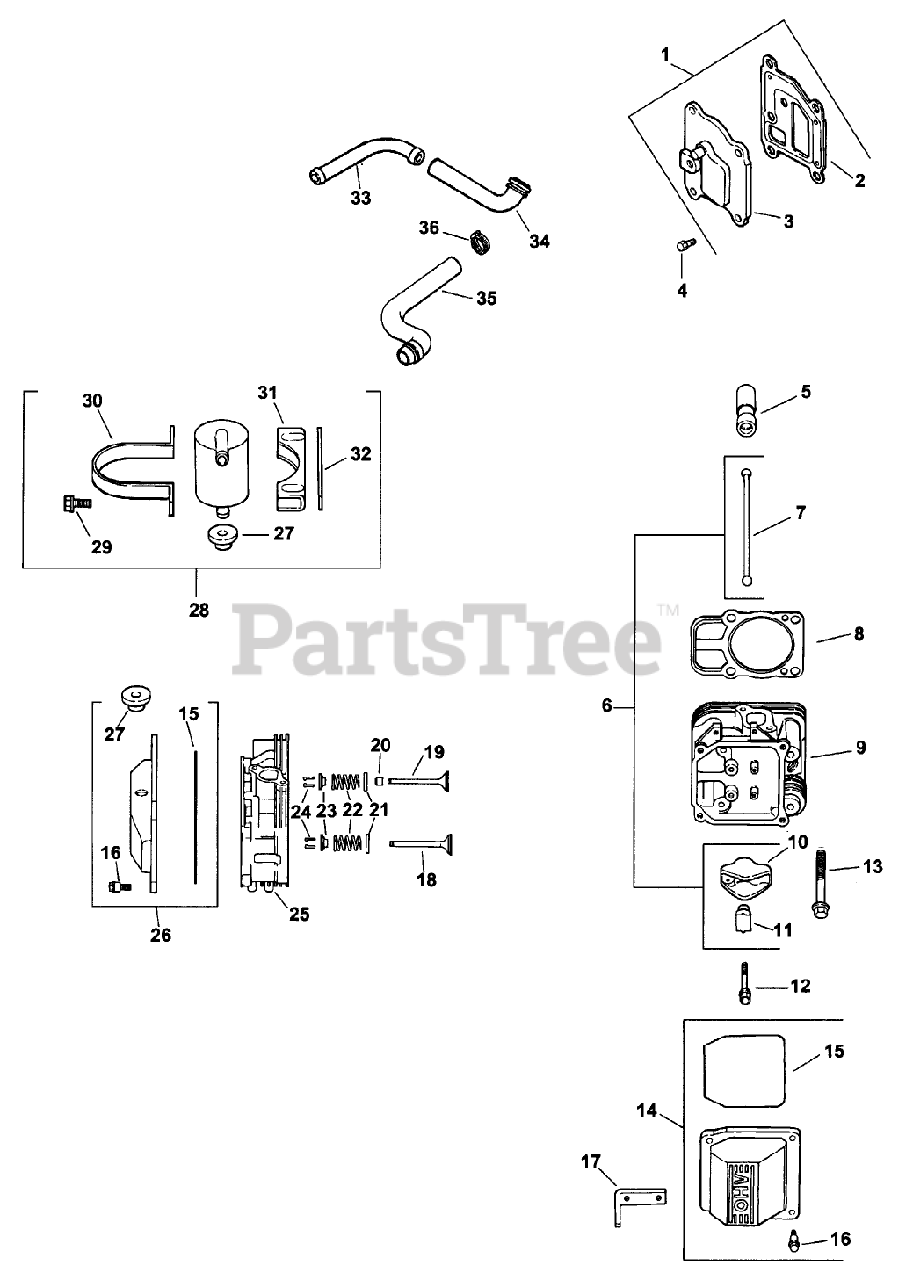

HEAD/VALVE/BREATHER ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 033 03

Kit, breather cover w/gasket (Incl. 2,3)
(Superseded to 24 033 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 23

Gasket-Breather
(Superseded to 24 041 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 11

0

3

2409659

Cover, breather

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

5

Kohler 25 351 01

Lifter-Valve
(Superseded to 25 351 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$23.99

$

In Stock, Qty 6

0

6

Kohler 24 755 66

Kit, valve train (Includes 7,10,11)
(Superseded to 24 755 66-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$45.99

$

In Stock, only 3 left!

0

7

Kohler 24 411 05

Rod-Push
(Superseded to 24 411 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 2 left!

0

8

2404108

Gasket-Cylinder Head

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

2431812

#2 Cyl. Head Asm,

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler 25 186 01

Arm-Rocker
(Superseded to 25 186 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, only 3 left!

0

11

Kohler 24 599 01

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 12

0

12

Kohler M-0640034

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1208616

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler 24 755 74

Kit, valve cover-plain (Includes 15,16)
(Superseded to 24 755 74-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, only 2 left!

0

15

Kohler 24 153 16

O-Ring
(Superseded to 24 153 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

In Stock, only 1 left!

0

16

2408632

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

2444501

Strap-Lifting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

Kohler 24 016 01

Valve-Exhaust
(Superseded to 24 016 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, Qty 7

0

Kohler 24 016 02

Valve-Exhaust (.25)
(Superseded to 32 016 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 3 left!

0

19

Kohler 24 017 01

Valve-Intake
(Superseded to 24 017 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$30.99

$

In Stock, Qty 20+

0

Kohler 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, Qty 8

0

21

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

22

Kohler 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

Usually ships in 2-5 days

0

23

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.49

$

In Stock, Qty 9

0

24

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 3 left!

0

25

2431811

#1 Cyl. Head Asm

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

26

2475576

Kit,valve coverbreather(Incl. 15,16,27)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

27

2531302

Grommet-Rubber

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

28

2475557

Kit, breather separator (Includes 27,29-32)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

29

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

30

2444502

Strap-Lifting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

31

2412644

Bracket

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

32

2411212

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

33

2429406

Fitting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

34

2432613

Hose-Breather

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

35

2432614

Hose-Breather

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

36

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0
