74177 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) BLOWER HOUSING & BAFFLES ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

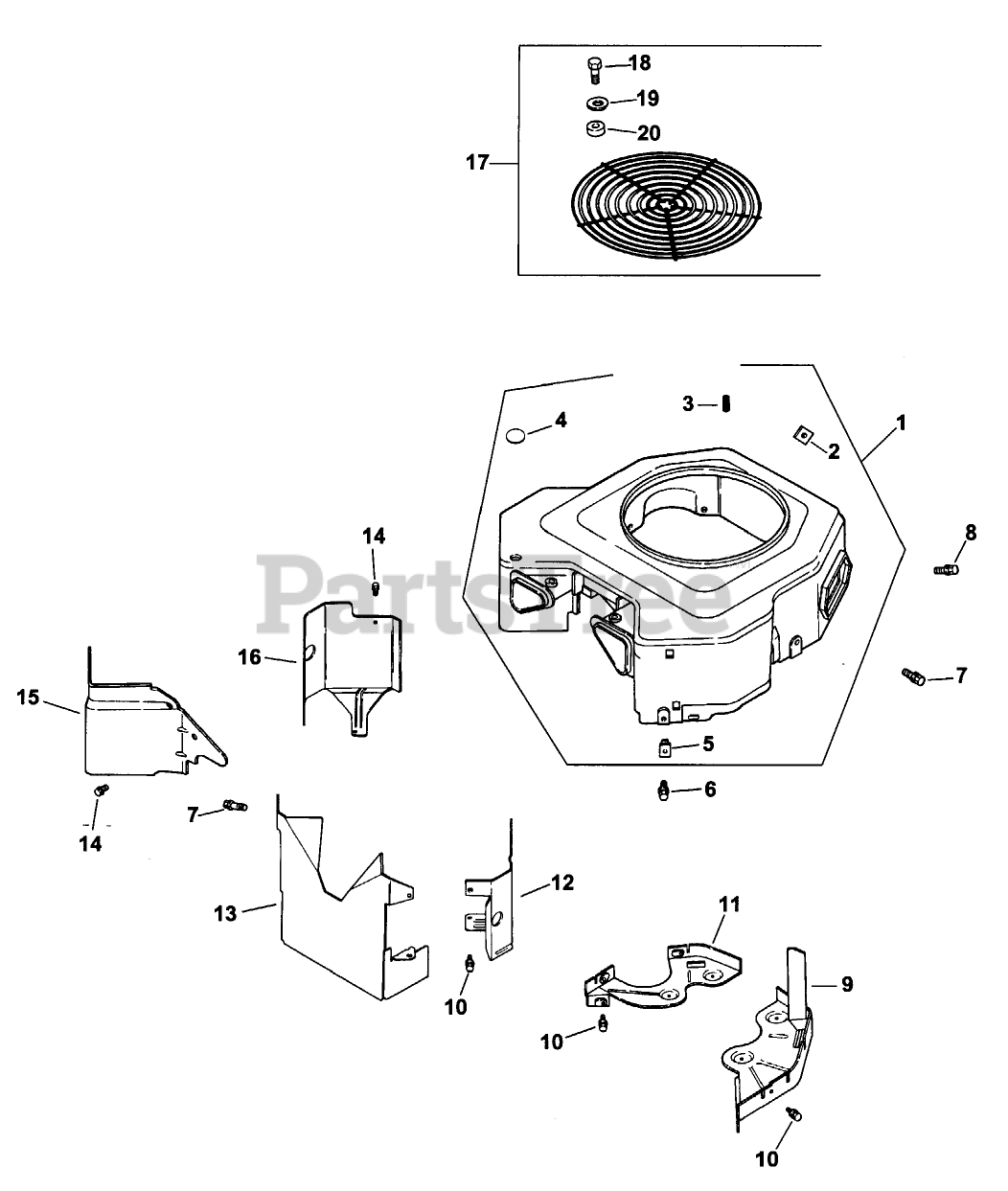

BLOWER HOUSING & BAFFLES ASSEMBLY Parts Diagram

  • Title

1

2402728

Housing, blower (Includes 2-5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

3

2508643

Screw-Set

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 25 139 16

Plug-Button
(Superseded to 25 139 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

6

Toro M-0567020

Screw-HF

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

7

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

8

Kohler M-0551016

Screw
(Superseded to M-551016-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

9

2414602

Plate-Backing #2 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 15

0

11

2414608

Plate-Backing #1

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

13

2406323

Baffle-Valley #1 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 3 left!

0

15

2406314

Baffle-Valley #2 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

2406330

Baffle-Cyl. #1 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

2475594

Kit, guard (Includes 18-20,Threaded insert Qty. 3] 24 332 01)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

Kohler 24 086 39

Screw
(Superseded to 25 086 160-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 14

0

19

2446810

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

2411209

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2433201

Insert, threaded

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2433201

Insert, threaded

Note: Not illustrated

$

$

Not available

2411367

Decal, 20 HP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411367

Decal, 20 HP

Note: Not illustrated

$

$

Not available
