74177 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) AIR INTAKE ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

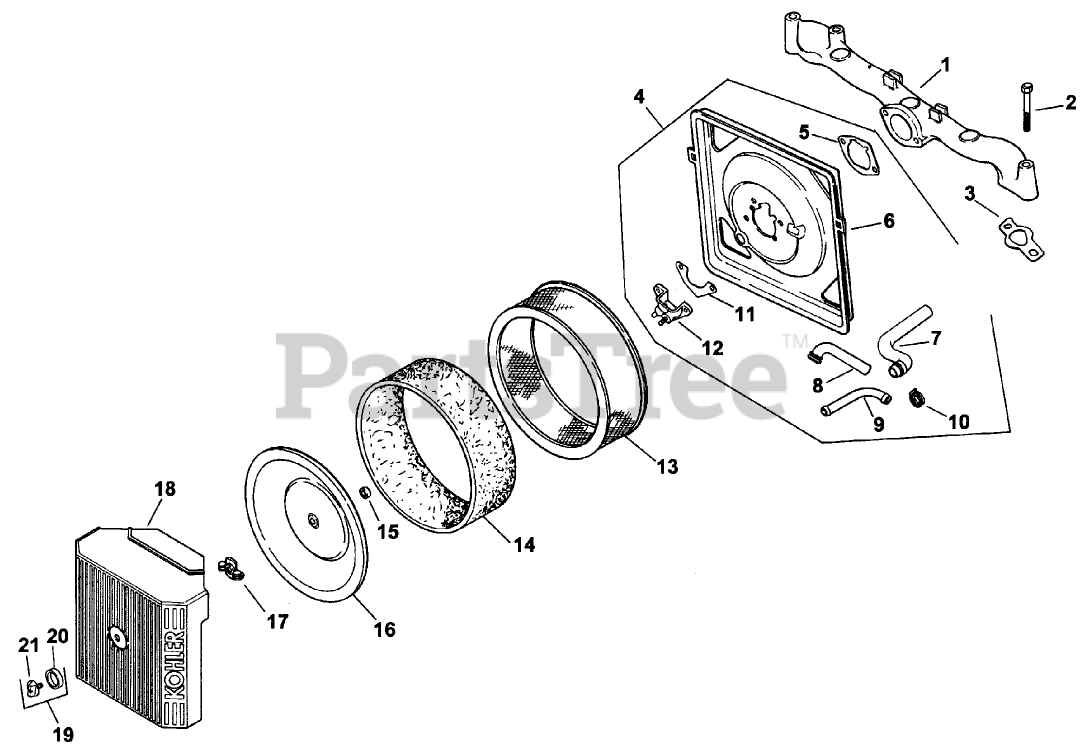

AIR INTAKE ASSEMBLY Parts Diagram

  • Title

1

2416406

Manifold-Intake

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler M-0651055

Screw
(Superseded to 25 086 766-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

3

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

4

2475586

Kit, air cleaner base (Includes 5-12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

2404114

Gasket-A/C Base

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

2409419

Base, air cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

2432613

Hose-Breather

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

2432614

Hose-Breather

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

2429406

Fitting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

11

2404113

Gasket-Fuel Spitback

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

2410910

Cup, fuel spitback

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

4708303

Bement-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

2408302

Bement-Precleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

2403203

Seal, insert

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler 24 096 01

Cover-Inner AirCleaner
(Superseded to 24 096 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 1 left!

0

17

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

18

2409624

Cover-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

5475501

Kit, knob with seal (Includes 20,21)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

2415315

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

21

2534103

Knob-Cover

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
