74176 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220000262) (2002) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

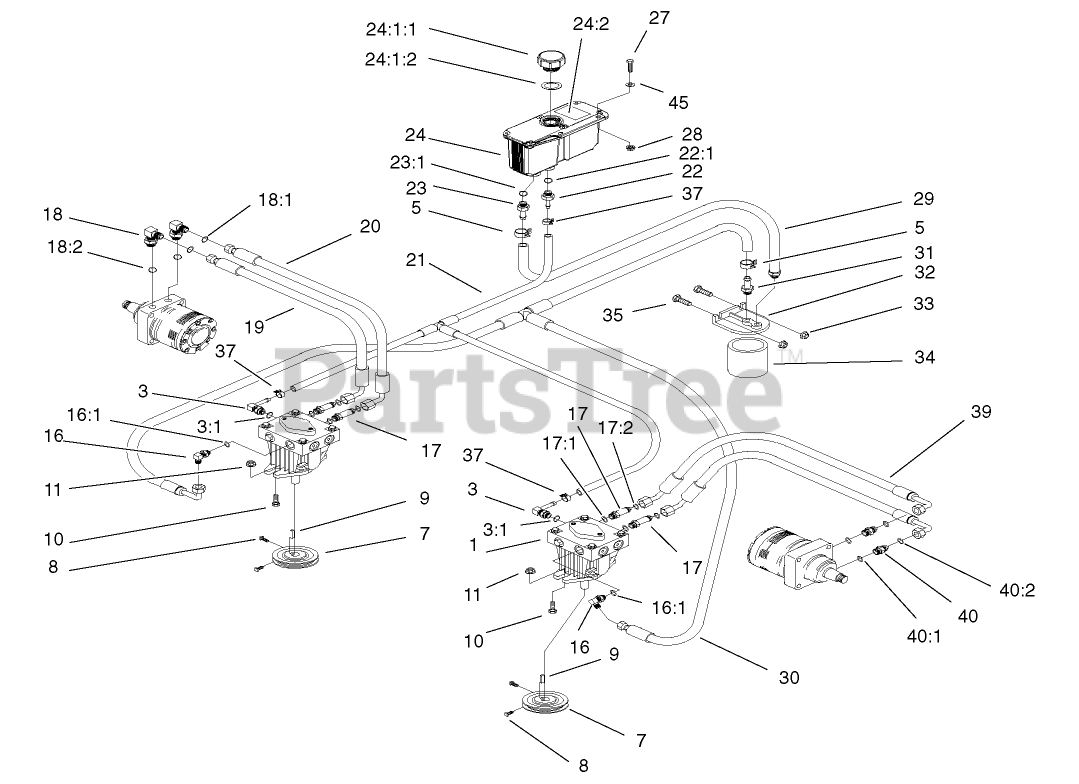

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 103-1942

PUMP-HYD

$1071.99

$

In Stock, only 2 left!

0

3

Toro 103-1799

ELBOW-90 DEG

$28.99

$

In Stock, only 1 left!

0

3:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

5

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

7

Toro 1-653156

PULLEY

$71.99

$

In Stock, only 3 left!

0

8

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 8

0

9

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Toro 103-1802

FITTING-ELBOW, 90 DEG

$22.99

$

In Stock, only 1 left!

0

16:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

17

Toro 103-1940

ADAPTER-HYD, STRAIGHT

$23.99

$

In Stock, only 3 left!

0

17:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

17:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-633605

FITTING-HYD, 90 DEG

$47.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

18:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

19

Toro 1-653186

HOSE-FRONT

$75.99

$

In Stock, only 1 left!

0

20

Toro 1-653187

HOSE-REAR, RH

$76.99

$

In Stock, only 1 left!

0

21

Toro 103-1800

HYD Hose ASM

$52.99

$

In Stock, only 1 left!

0

22

Toro 103-1801

Adapter-Straight

$29.99

$

In Stock, only 1 left!

0

22:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

23

Toro 103-1912

ADAPTER-STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

24

Toro 103-1947

HYD Reservoir ASM

$257.99

$

Usually ships in 3-6 days

0

24:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 5

0

24:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

24:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0

24:1

HYD Reservoir ASM

Note: Not serviced

$

$

Not available

27

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

29

Toro 103-1805

HYD Hose ASM

$18.99

$

Usually ships in 3-6 days

0

30

Toro 103-1803

HYD Hose ASM

$109.99

$

In Stock, only 1 left!

0

31

Toro 103-1804

Adapter-Straight

$

$

Not available

32

Toro 1-603720

HEAD-FILTER

$

$

Not available

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 17

0

34

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 1 left!

0

35

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 11

0

39

Toro 103-1680

Hose-LH
(Superseded to 103-3809)

$111.99

$

In Stock, only 2 left!

0

40

Toro 1-603991

Fitting-Straight

$20.99

$

In Stock, only 2 left!

0

40:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

40:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

45

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
