74176 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) SEAT ASSEMBLY NO. 1-633705 Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

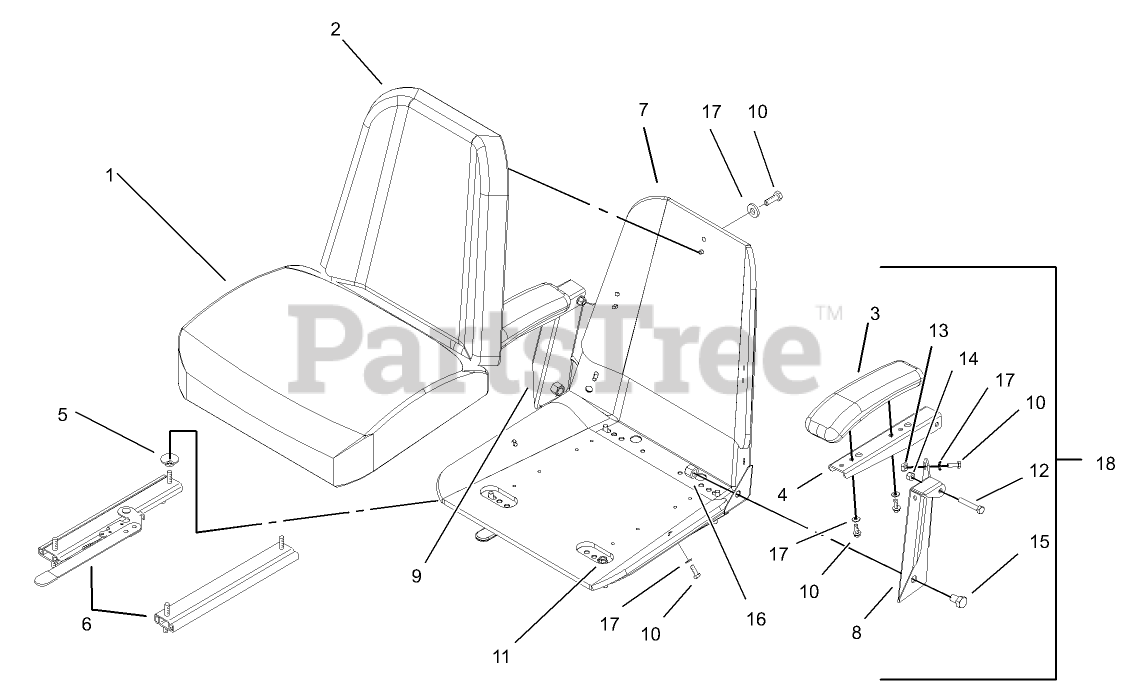

SEAT ASSEMBLY NO. 1-633705 Parts Diagram

  • Title

1

Toro 103-0290

CUSHION-SEAT, BOTTOM
(Superseded to 103-3521)

$264.99

$

In Stock, Qty 5

0

2

Toro 104-7754

CUSHION-SEAT, BACK

$507.99

$

In Stock, only 2 left!

0

3

Toro 1-633710

CUSHION-ARMREST
(Superseded to 110-4163)

$94.99

$

Usually ships in 3-6 days

0

4

Toro 105-3623

CHANNEL-ARMREST

$69.99

$

Usually ships in 3-6 days

0

5

Toro 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

6

Toro 1-643255

TRACK-SEAT

$200.99

$

In Stock, only 2 left!

0

7

Toro 1-633859

FRAME-SEAT

$196.99

$

In Stock, only 3 left!

0

8

Toro 105-3622

Bracket-Armrest, LH

$109.99

$

Usually ships in 3-6 days

0

9

Toro 105-3621

Bracket-Armrest, RH

$109.99

$

Usually ships in 3-6 days

0

10

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

15

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

16

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 105-3620

ARMREST KIT

$429.99

$

Usually ships in 3-6 days

0
