74176 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH500V-ES10 Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

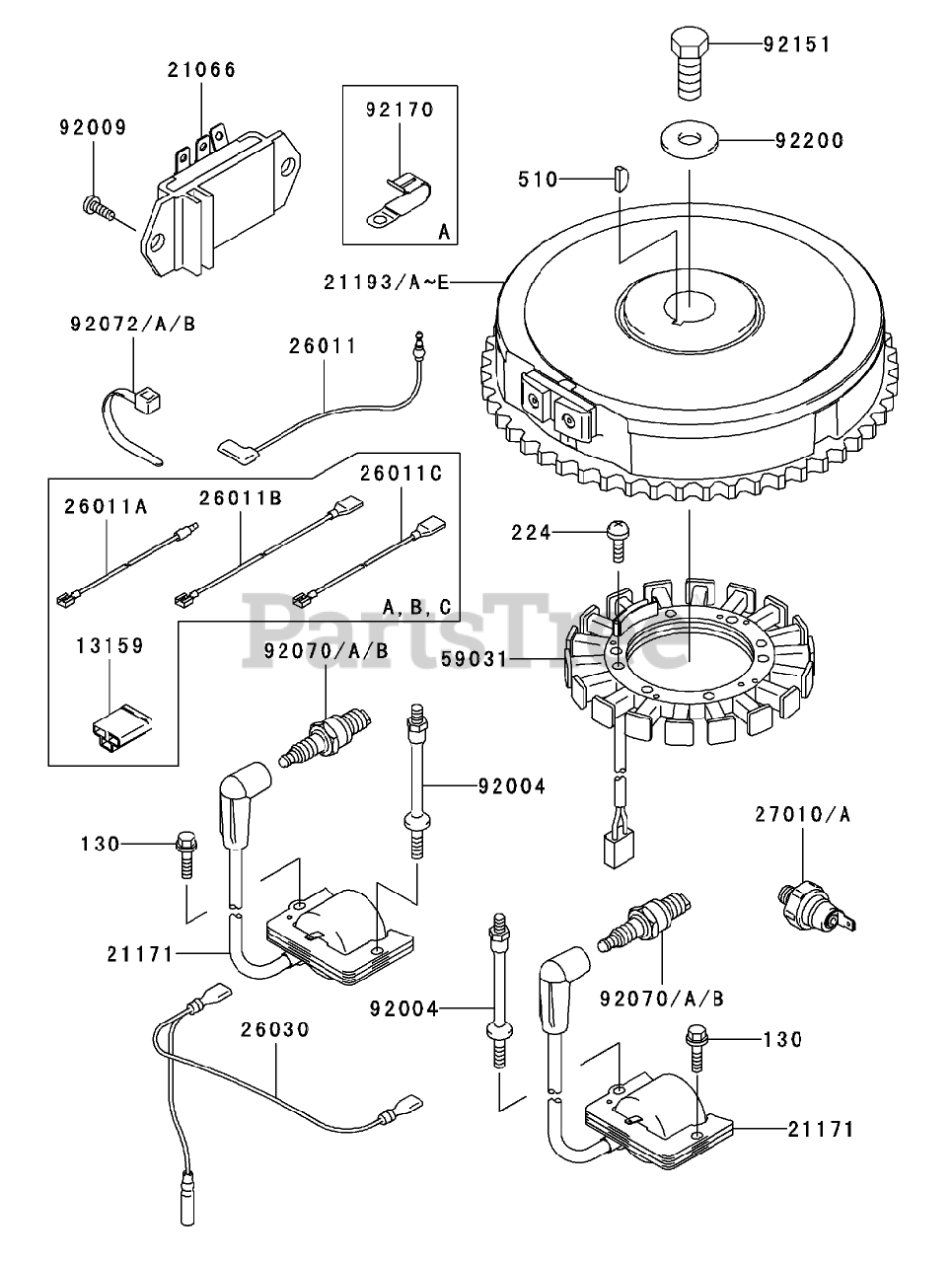

ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH500V-ES10 Parts Diagram

  • Title

21066

Kawasaki 21066-7001

Regulator-Voltage
(Superseded to 21066-7011)

Note: Obtain Parts From Kawasaki

$77.99

$

In Stock, Qty 8

0

21171

Toro 21171-7001

Ignition Coil ASM

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

21193C

Kawasaki 21193-7007

FLYWHEEL ASM
(Superseded to 21193-7032)

Note: Obtain Parts From Kawasaki

$293.99

$

In Stock, only 1 left!

0

26011

Kawasaki 26011-7001

Wire-Lead

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 10

0

26030

Kawasaki 26030-7001

Harness

Note: Obtain Parts From Kawasaki

$10.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7001

Coil-Charging
(Superseded to 59031-7009)

Note: Obtain Parts From Kawasaki

$128.99

$

Usually ships in 2-5 days

0

92004

Toro 92004-2147

Stud

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

92009

Kawasaki 92009-2308

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 6

0

92070A

Kawasaki 92070-7003

SPARK PLUG (R C J 8 Y, SOLID)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 20+

0

92072A

Kawasaki 92072-7003

Band

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, only 1 left!

0

92200

Toro 92220-7002

Washer

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN (5X20)
(Superseded to 224AA0520)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 11

0

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 11

0
