74176 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

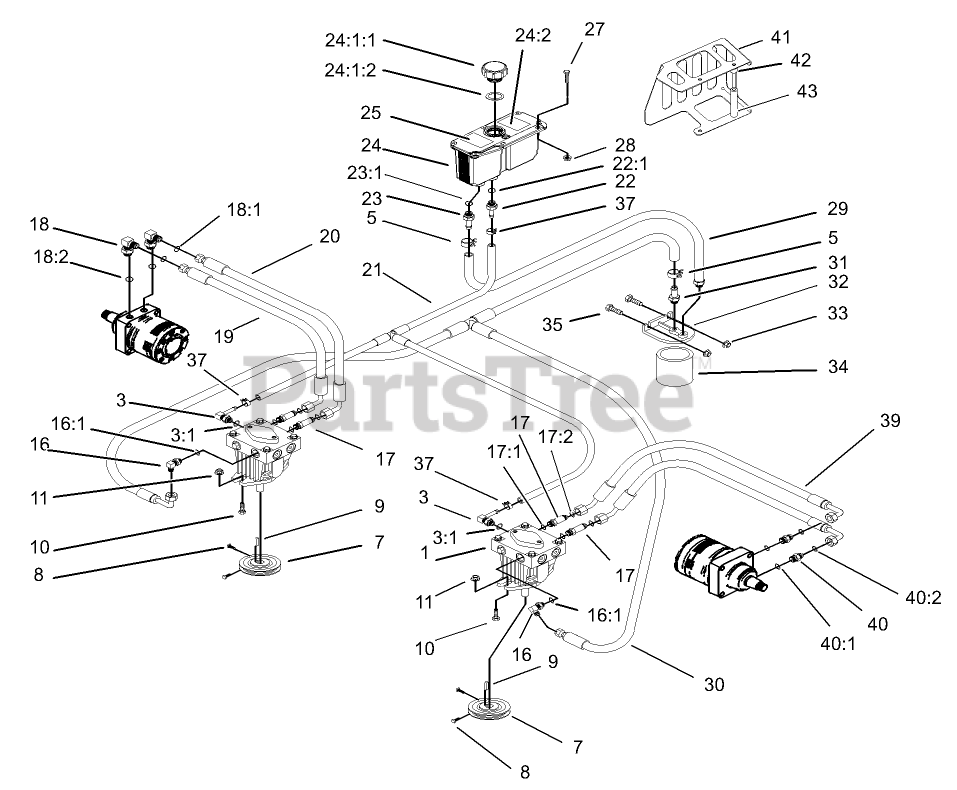

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 103-1942

PUMP-HYD

$1134.99

$

In Stock, only 2 left!

0

1:10

Toro 103-2666

CYLINDER BLOCK KIT

Note: Not illustrated

$546.99

$

Usually ships in 3-6 days

0

1:14

Toro 106-2053

SHOCK VALVE KIT

Note: Not illustrated

$

$

Not available

1:1

Toro 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$84.99

$

In Stock, Qty 12

0

1:2

Toro 105-6185

Plate-Valve

Note: Not illustrated

$112.99

$

Usually ships in 3-6 days

0

1:8

Toro 103-2664

INPUT SHAFT KIT

Note: Not illustrated

$779.99

$

Usually ships in 3-6 days

0

1:9

Toro 103-2665

THRUST BEARING KIT
(Superseded to 94-6922)

Note: Not illustrated

$62.99

$

In Stock, only 3 left!

0

3

Toro 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 2 left!

0

3:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

5

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

7

Toro 1-653156

PULLEY

$68.99

$

In Stock, only 3 left!

0

8

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 18

0

9

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Toro 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro 103-1940

ADAPTER-HYD, STRAIGHT

$25.99

$

In Stock, only 3 left!

0

17:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

17:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-633605

FITTING-HYD, 90 DEG

$49.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

18:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

19

Toro 100-3964

HOSE-FRONT

$

$

Not available

20

Toro 100-3965

HOSE-REAR

$

$

Not available

21

Toro 103-1800

HYD Hose ASM

$57.99

$

In Stock, only 1 left!

0

22

Toro 103-1801

Adapter-Straight

$30.99

$

In Stock, only 1 left!

0

22:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

23

Toro 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

24

Toro 105-6127

Hydraulic Tank ASM

$

$

Not available

24:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$32.99

$

In Stock, Qty 20+

0

24:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

24:2

Toro 100-3952

DECAL-HOT SURFACE
(Superseded to 107-2131)

$

$

Not available

24:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

25

Toro 103-2644

DECAL-EXHAUST

$2.99

$

In Stock, only 2 left!

0

27

Toro 321-21

SCREW-HH

$19.99

$

Usually ships in 3-6 days

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 103-1805

HYD Hose ASM

$

$

Not available

30

Toro 103-1803

HYD Hose ASM

$107.99

$

In Stock, only 1 left!

0

31

Toro 103-1804

Adapter-Straight

$

$

Not available

32

Toro 1-603720

HEAD-FILTER

$

$

Not available

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 20+

0

34

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 3 left!

0

35

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 8

0

39

Toro 105-6187

HOSE ASM

$214.99

$

Usually ships in 3-6 days

0

40

Toro 1-603991

Fitting-Straight

$21.99

$

In Stock, only 4 left!

0

40:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

40:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

41

Toro 105-3617-03

Shield-Heat, HYD Reservoir

$

$

Not available

42

Toro 105-3619

Spacer

$17.99

$

Usually ships in 3-6 days

0

43

Toro 105-3618

Spacer

$

$

Not available
