74176 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) DECK RECYCLER ASSEMBLY Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

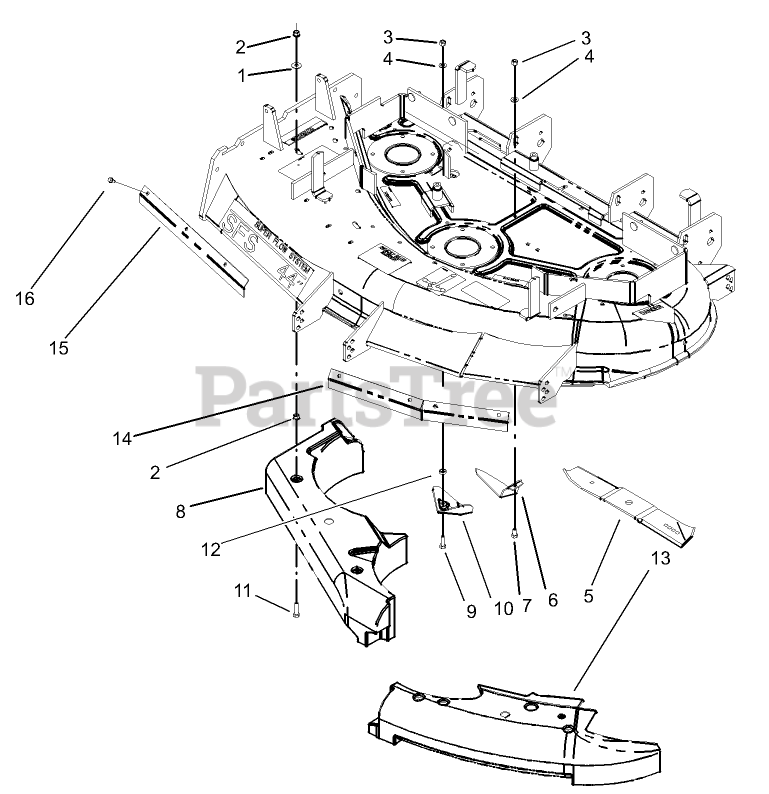

DECK RECYCLER ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

2

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 92-7952

Blade-Recycler
(Superseded to 92-7952-03)

$37.99

$

In Stock, only 1 left!

0

6

Toro 93-1196

KICKER-CENTER, REAR

$

$

Not available

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

8

Toro 93-7651

BAFFLE-RH

$356.99

$

Usually ships in 3-6 days

0

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 84-5760

PLATE-KICKER

$15.99

$

Usually ships in 3-6 days

0

11

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

12

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

13

Toro 93-7652

BAFFLE-LH

$356.99

$

Usually ships in 3-6 days

0

14

Toro 105-2675-01

GUARD-LEFT

$

$

Not available

15

Toro 105-2672-01

GUARD-RIGHT

$

$

Not available

16

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0
