74176 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) MOTION CONTROL SYSTEM ASSEMBLY Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

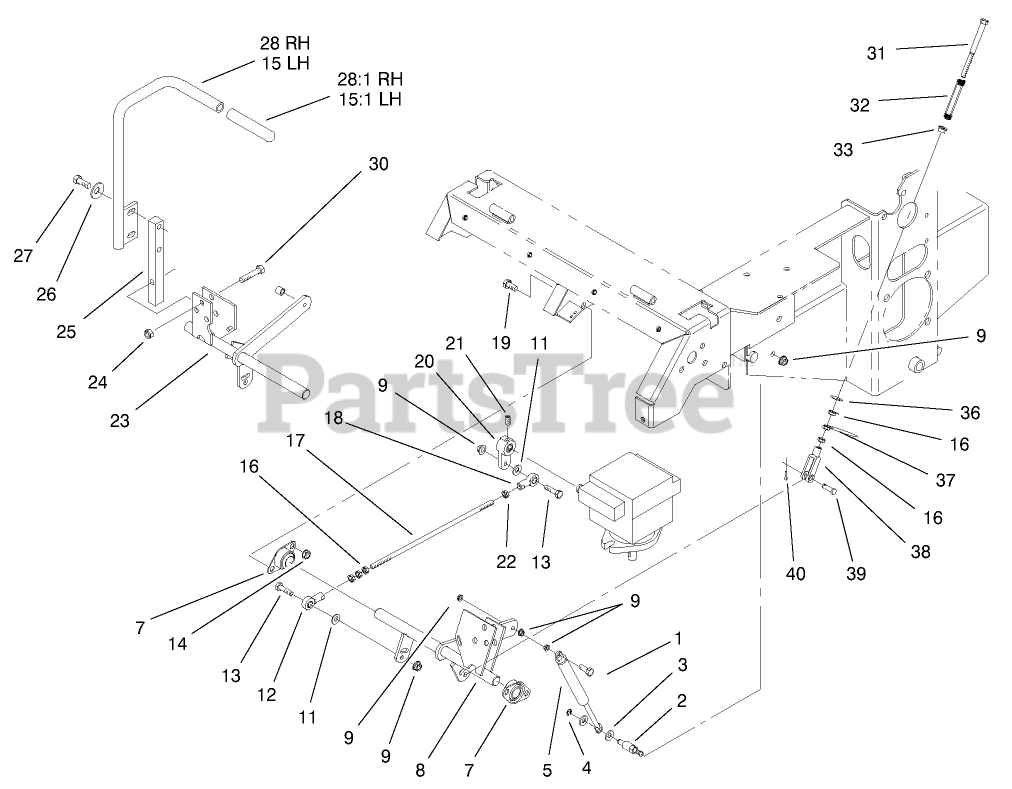

MOTION CONTROL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 1-653316

PIN-DAMPER

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

5

Toro 1-523027

DAMPER-CONTROL
(Superseded to 109-2339)

$76.99

$

In Stock, only 3 left!

0

7

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

8

Toro 103-2199

LH Motion Control ASM
(Superseded to 103-4774)

$148.99

$

In Stock, only 1 left!

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

13

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro 103-0631

LH LEVER ASM

$95.99

$

Usually ships in 3-6 days

0

15:1

Toro 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

16

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

17

Toro 1-653046

LINKAGE-PUMP/LEVER
(Superseded to 103-3066)

$

$

Not available

18

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

19

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

20

Toro 1-653092

ARM-CONTROL, PUMP
(Superseded to 103-3717)

$18.99

$

In Stock, only 3 left!

0

21

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

22

$2.99

$

In Stock, only 2 left!

0

23

Toro 103-2200

RH Motion Control ASM
(Superseded to 109-3911)

$

$

Not available

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

25

Toro 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

26

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

27

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 103-0632

RH LEVER ASM

$95.99

$

Usually ships in 3-6 days

0

28:1

Toro 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

30

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

32

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

33

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

36

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

38

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

39

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

40

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0
