74176 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH500V-ES10 Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

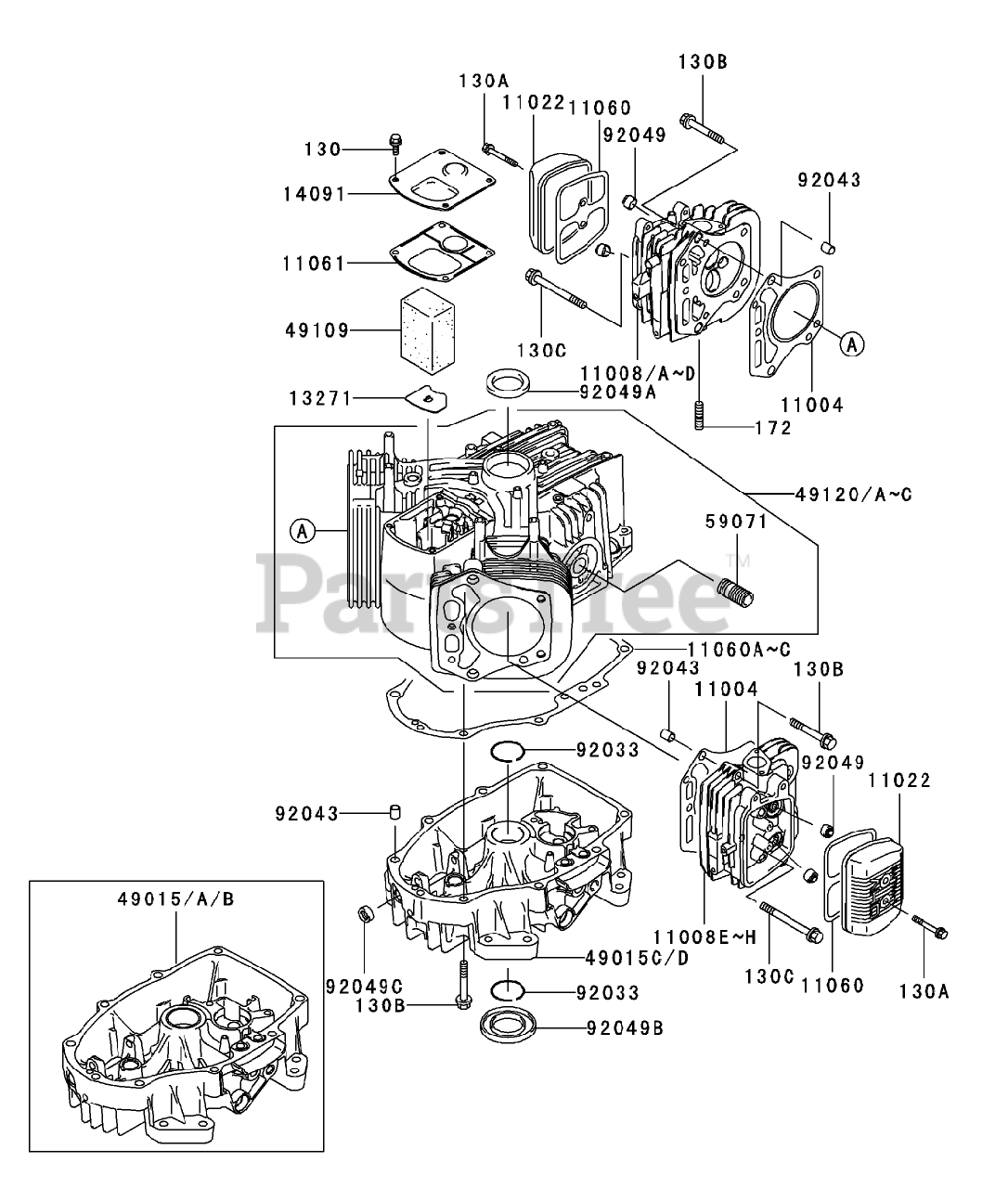

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH500V-ES10 Parts Diagram

  • Title

11004

Kawasaki 11004-7005

Gasket-Head
(Superseded to 11004-7015)

Note: Obtain Parts From Kawasaki

$10.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-6042

Head-Cylinder
(Superseded to 11008-6043)

Note: Obtain Parts From Kawasaki

$273.99

$

In Stock, Qty 9

0

11008G

Kawasaki 11008-7009

Head-Cylinder
(Superseded to 11008-7020)

Note: Obtain Parts From Kawasaki

$273.99

$

In Stock, only 1 left!

0

11022

Toro 11022-7003

Case-Rocker

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-7007

Gasket, Crankcase Cover
(Superseded to 11060-7008)

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7001

GASKET-BREATHER
(Superseded to 99996-6104)

Note: Obtain Parts From Kawasaki

$18.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7016

Plate

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 3 left!

0

14090

Toro 14090-7001

Cover, Breather

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

14091

Toro 14091-7006

Cover

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49015C

Kawasaki 49015-6226

Cover-Crankcase
(Superseded to 49015-6253)

Note: Obtain Parts From Kawasaki

$180.99

$

Usually ships in 2-5 days

0

49109

Toro 49109-7002

Element-Breather

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49120B

Toro 49120-6132

Crankcase-Comp

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

59071

Kawasaki 59071-2079

Joint

Note: Obtain Parts From Kawasaki

$6.49

$

In Stock, Qty 8

0

92033

Kawasaki 92033-7003

Ring-Snap

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 17

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain Parts From Kawasaki

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7002

Seal-Oil
(Superseded to 92049-7010)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7004

Seal-Oil
(Superseded to 92049-7011)

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 15

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, only 3 left!

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
