74174 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) PARKING BRAKE SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

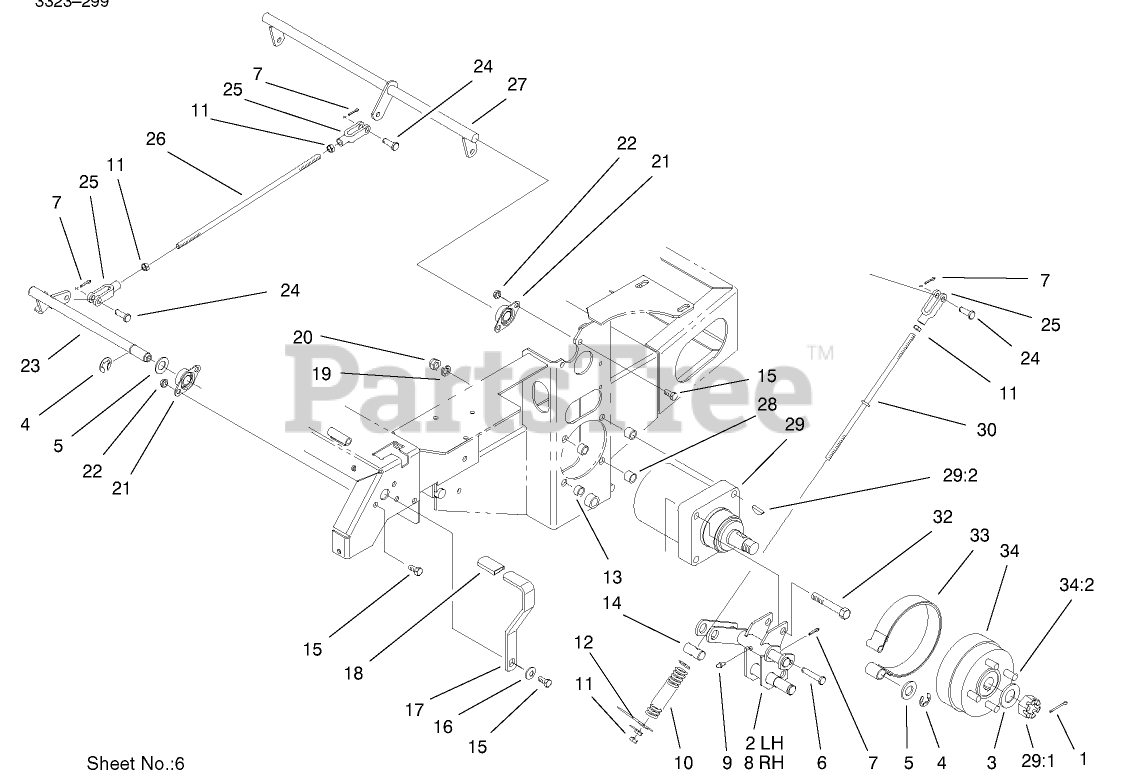

PARKING BRAKE SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro E806800

Pin-Cotter
(Superseded to 1-806800)

$2.99

$

In Stock, Qty 18

0

2

Toro E652134

Bracket-Brake, LH
(Superseded to 1-652134-03)

$

$

Not available

3

Toro E523157

Spacer
(Superseded to 1-523157)

$1.49

$

In Stock, Qty 20+

0

4

Toro E808514

Ring-Retaining
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

5

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

6

Toro E808283

Pin-Clevis
(Superseded to 1-808283)

$

$

Not available

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro E652135

Bracket-Brake, RH
(Superseded to 1-652135-03)

$243.99

$

In Stock, only 1 left!

0

9

Toro E811007

Fitting-Grease
(Superseded to 302-11)

$1.99

$

In Stock, only 2 left!

0

10

Toro E633454

Spring-Brake
(Superseded to 1-633454)

$10.99

$

In Stock, only 1 left!

0

11

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro E653069

Spacer
(Superseded to 1-653069)

$12.99

$

Usually ships in 3-6 days

0

14

Toro E633144

Pin-Trunion
(Superseded to 1-633144)

$13.99

$

Usually ships in 3-6 days

0

15

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

16

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

17

Toro E653074

Handle-Brake, Park
(Superseded to 1-653074-03)

$58.99

$

Usually ships in 3-6 days

0

18

Toro E633268

Grip-Brake Lever
(Superseded to 1-633268)

$14.99

$

In Stock, only 4 left!

0

19

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

21

Toro E633102

Bearing-Side Flange
(Superseded to 1-633102)

$18.99

$

In Stock, only 2 left!

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro E652085

Shaft-Brake
(Superseded to 1-652085)

$

$

Not available

24

Toro E808285

Pin-Clevis
(Superseded to 1-808285)

$3.49

$

In Stock, Qty 15

0

25

Toro E633131

Yoke-Brake Linkage
(Superseded to 1-633131)

$15.99

$

In Stock, Qty 5

0

26

Toro E653061

Linkage-Brake Handle
(Superseded to 1-653061)

$21.99

$

In Stock, only 1 left!

0

27

Toro E652073

Brake Crank
(Superseded to 1-652073-03)

$

$

Not available

28

Toro E653068

Spacer
(Superseded to 1-653068)

$13.99

$

Usually ships in 3-6 days

0

29

Toro E523328

Motor-Wheel
(Superseded to 1-523328)

$1375.99

$

Usually ships in 3-6 days

0

29:1

Toro E809036

Nut
(Superseded to 1-809036)

$37.99

$

In Stock, Qty 5

0

29:2

Toro E807020

Key-Woodruff
(Superseded to 3257-42)

$6.49

$

In Stock, Qty 12

0

30

Toro E633477

Rod-Brake
(Superseded to 1-633477)

$19.99

$

In Stock, only 1 left!

0

32

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

33

Toro E633693

Band-Brake
(Superseded to 1-633693)

$76.99

$

Usually ships in 3-6 days

0

34

Toro E634927

Hub And Drum ASM
(Superseded to 103-0590)

$182.99

$

In Stock, Qty 8

0

34:2

Toro E633926

Stud-Wheel
(Superseded to 1-633926)

$4.99

$

In Stock, Qty 11

0
