74174 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 8 FUEL SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

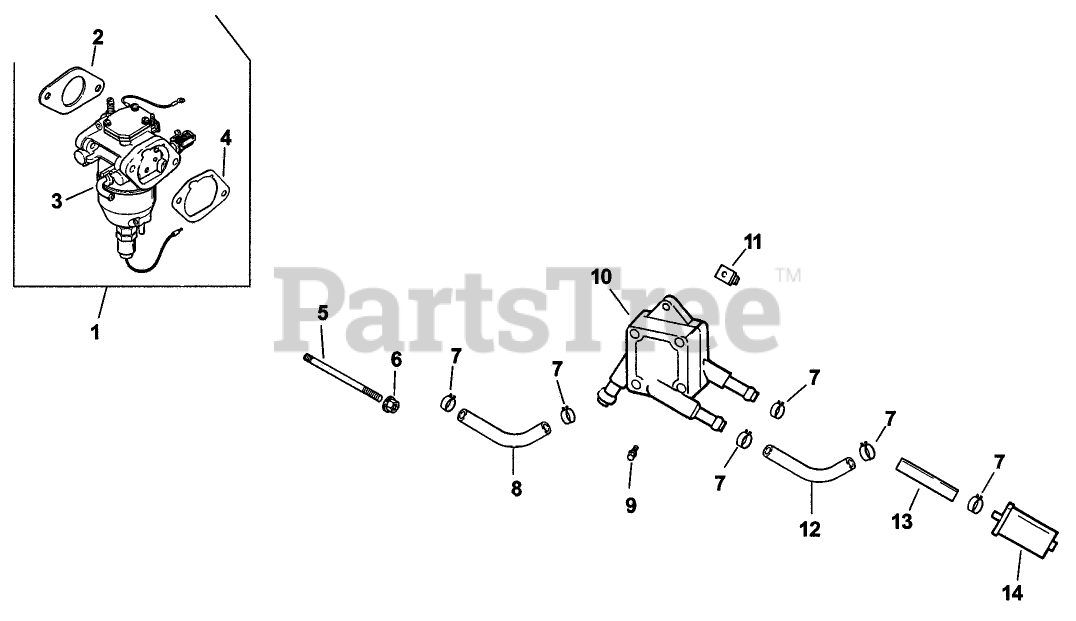

GROUP 8 FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 853 25-S

Kit, carburetor with gaskets (Includes 2-4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$605.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

Gasket-carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 1 left!

0

3

Toro 24 053 25-S

Carburetor assembly (For information only not available separately)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

5

Toro M-0629095-S

Stud

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

6

Toro M-0641060-S

Nut-Hex Flange

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

7

Kohler X-426-9-S

Clamp
(Superseded to 25 237 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

8

Kohler 24 353 03-S

Line, fuel 10-1/2
(Superseded to 24 353 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Toro 24 393 04-S

Pump, fuel-pulse

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

11

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

12

Kohler 25 353 22-S

Line, fuel 9"

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

14

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0
