74174 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 10 AIR INTAKE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

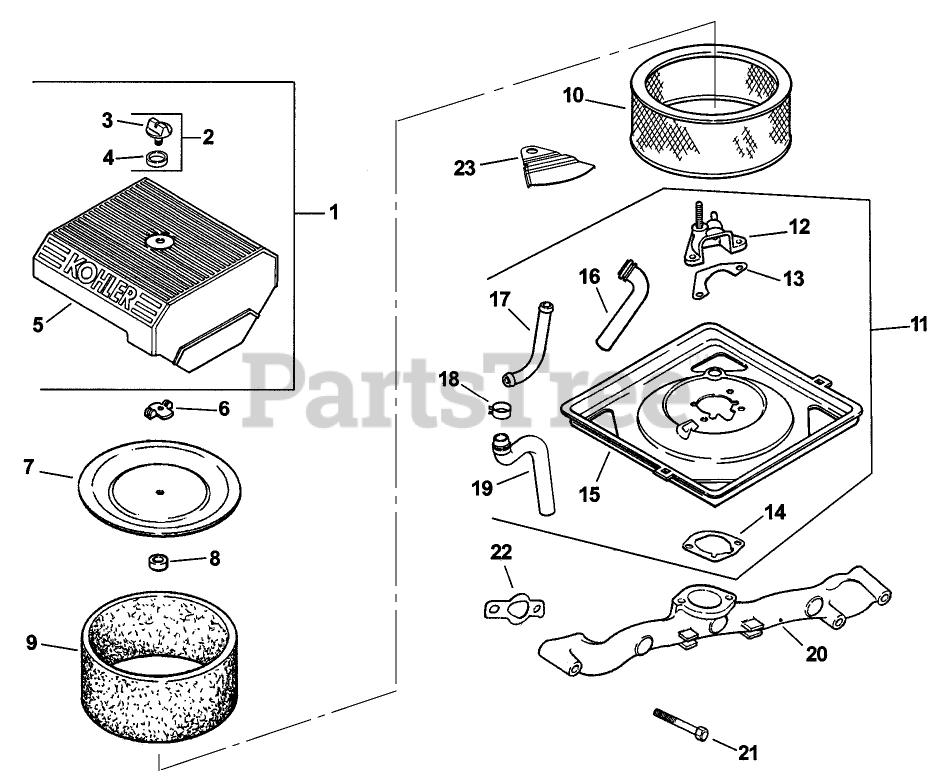

GROUP 10 AIR INTAKE ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 743 05-S

Kit, air cleaner cover (Incl. Ref. 2-5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

In Stock, only 1 left!

0

2

Kohler 54 755 01-S

Kit, knob with seal (Includes 3,4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, only 4 left!

0

3

Kohler 25 341 03-S

Knob-Cover
(Superseded to 25 341 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

Usually ships in 2-5 days

0

4

Kohler 24 153 15-S

O-Ring
(Superseded to 24 153 20-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 10

0

5

Kohler 24 096 24-S

Cover, air cleaner
(Superseded to 24 096 67-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$47.99

$

In Stock, only 1 left!

0

6

Kohler 12 100 01-S

NUT-WING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

7

Kohler 24 096 01-S

COVER-AIR CLEANER, INNER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 1 left!

0

8

Kohler 24 032 03-S

SEAL-AIR CLEANER, INNER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 9

0

9

Kohler 47 083 03-S

Element-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$23.99

$

In Stock, Qty 17

0

10

Kohler 24 083 02-S

Element-Precleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, Qty 8

0

11

Kohler 24 755 86-S

Kit, air cleaner base

Note: Call PartsTree Customer Service for more information on Kohler Parts

$140.99

$

Usually ships in 2-5 days

0

12

Kohler 24 109 10-S

Cup, fuel spitback
(Superseded to 24 109 26-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$22.99

$

In Stock, only 2 left!

0

13

Kohler 24 041 13-S

Gasket, fuel spitback cup

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 1 left!

0

14

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 9

0

15

Kohler 24 094 19-S

Base, air cleaner
(Superseded to 24 094 86-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$82.99

$

Usually ships in 2-5 days

0

16

Kohler 24 326 13-S

Hose, breather
(Superseded to 24 326 86-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, only 1 left!

0

17

Kohler 24 294 06-S

Fitting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, only 1 left!

0

18

Kohler X-426-9-S

Clamp
(Superseded to 25 237 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

19

Kohler 24 326 14-S

Hose, breather
(Superseded to 24 326 87-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, only 1 left!

0

20

Kohler 24 164 06-S

Manifold-Intake

Note: Call PartsTree Customer Service for more information on Kohler Parts

$222.99

$

Usually ships in 2-5 days

0

21

Toro M-0651055-S

Screw, hex. flange

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

22

Kohler 24 041 01-S

Gasket, intake manifold (Includes 12-19)
(Superseded to 24 041 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0
