74173 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) COOLING-EQUIPMENT ASSEMBLY KAWASAKI FH601V-S07 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

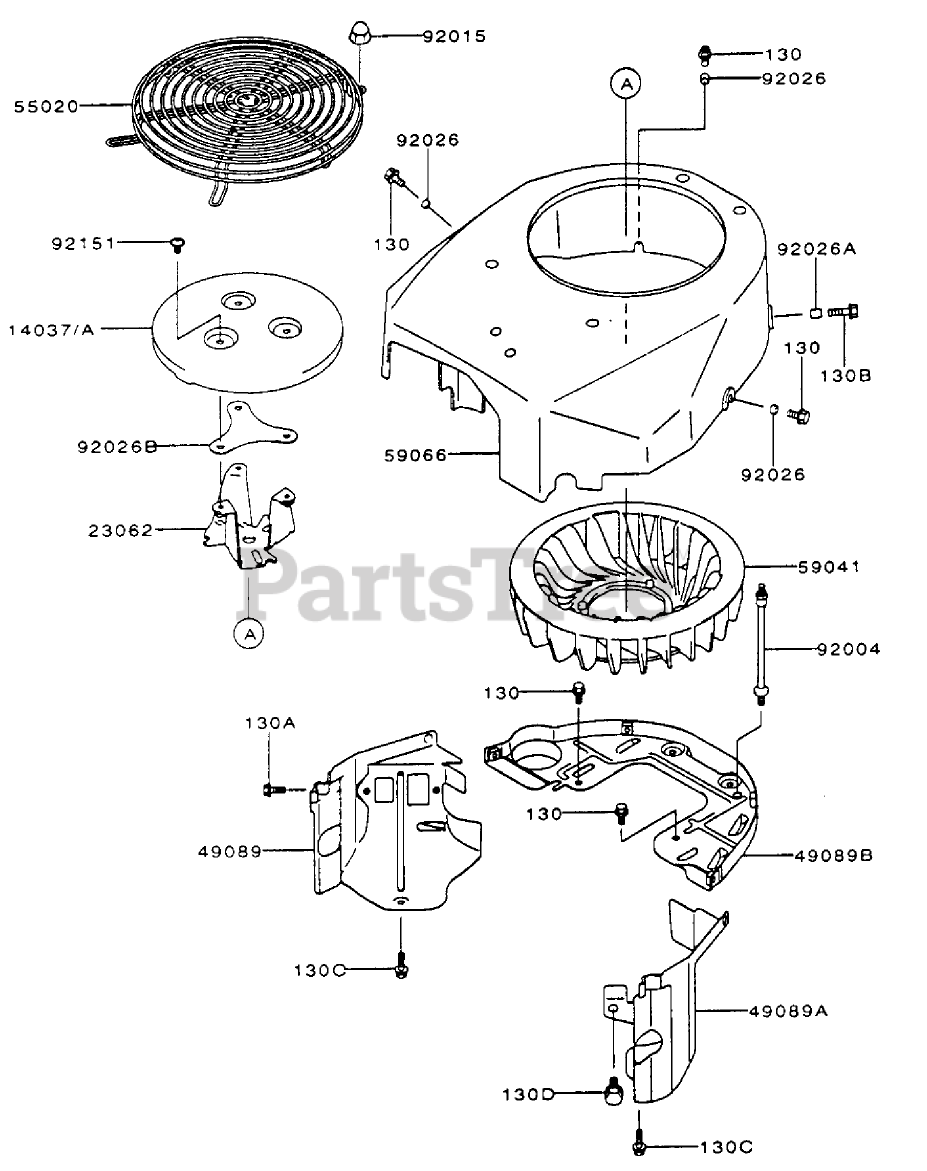

COOLING-EQUIPMENT ASSEMBLY KAWASAKI FH601V-S07 Parts Diagram

  • Title

13270

Kawasaki 13270-7007

Plate

$5.99

$

In Stock, Qty 15

0

14037

Kawasaki 14037-7008-9H

Screen
(Superseded to 14037-7008)

$35.99

$

In Stock, Qty 10

0

14091

Kawasaki 14091-7002

Cover

$3.49

$

In Stock, only 2 left!

0

23062

Kawasaki 23062-7005

Bracket

$12.99

$

In Stock, Qty 7

0

49089

Kawasaki 49089-7004

Shroud-Engine

$27.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 49089-7005

Shroud-Engine

$29.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7006

Shroud-Engine
(Superseded to 49089-7049)

$34.99

$

In Stock, only 1 left!

0

55020

Kawasaki 55020-7002

Guard
(Superseded to 55020-7007)

$53.99

$

Usually ships in 2-5 days

0

59041

Kawasaki 59041-7003

Fan

$22.99

$

Usually ships in 2-5 days

0

59066

Kawasaki 59066-7004

Housing-Fan

$

$

Not available

92004

Kawasaki 92004-2148

Stud
(Superseded to 92004-7006)

$6.99

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1170

Nut
(Superseded to 92210-0003)

$0.99

$

In Stock, Qty 7

0

92026

Kawasaki 92026-7001

SPACER (6.2X7.9X5)
(Superseded to 92153-7007)

$4.49

$

In Stock, Qty 18

0

92026A

Toro 92026-7003

Spacer

$

$

Currently unavailable

92026B

Kawasaki 92026-7007

Spacer

$5.99

$

In Stock, Qty 20+

0

92151

Toro 92151-7009

Bolt, 6x10

$

$

Currently unavailable

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 15

0

130A

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0
