74173 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) CONTROL-EQUIPMENT ASSEMBLY KAWASAKI FH601V-S07 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

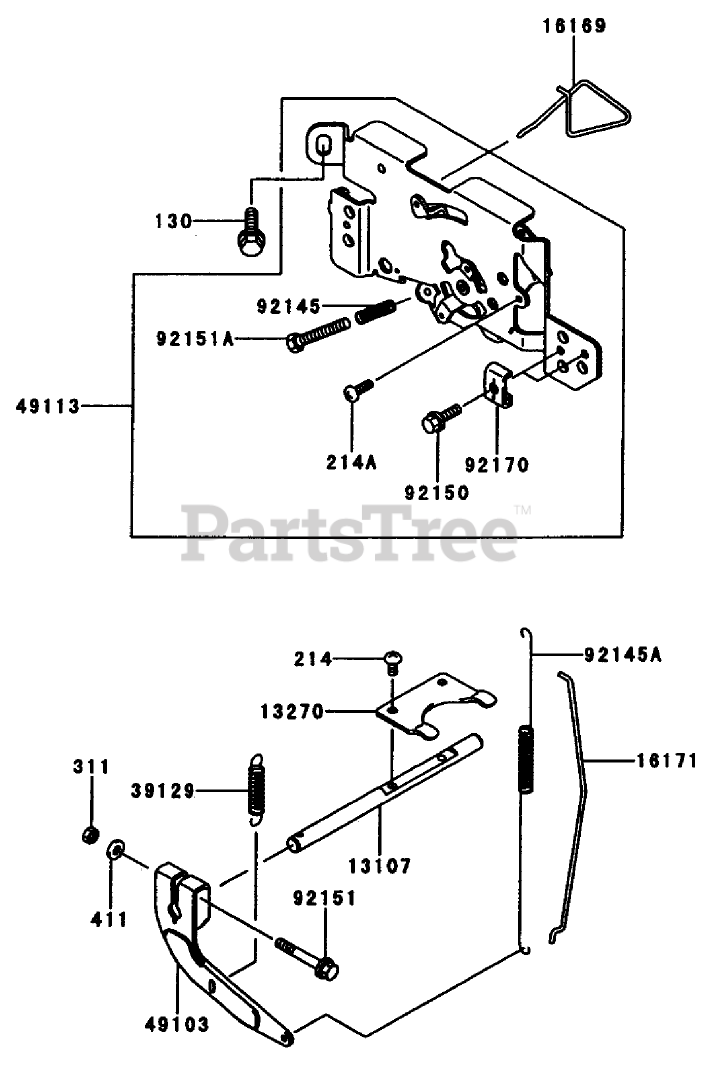

CONTROL-EQUIPMENT ASSEMBLY KAWASAKI FH601V-S07 Parts Diagram

  • Title

13107

Kawasaki 13107-7004

Shaft
(Superseded to 99996-6065)

$

$

Not available

13270

Toro 13270-7006

Plate

$

$

Currently unavailable

16169

Toro 16169-7003

Link-Choke

$

$

Currently unavailable

16171

Kawasaki 16171-7004

Link
(Superseded to 16171-0040)

$2.49

$

In Stock, Qty 20+

0

39129

Kawasaki 39129-7004

Spring-Governor

$5.49

$

In Stock, Qty 20+

0

49103

Toro 49103-7001

Arm-Governor

$

$

Currently unavailable

49113

Kawasaki 49113-7007

Panel-Comp-Control
(Superseded to 49113-7017)

$27.99

$

In Stock, only 1 left!

0

92145

Kawasaki 92145-7005

Spring

$0.99

$

In Stock, only 2 left!

0

92145A

Kawasaki 92145-7009

Spring
(Superseded to 92145-7034)

$3.49

$

In Stock, Qty 20+

0

92150

Kawasaki 92150-2182

BOLT (5X18)

$0.99

$

In Stock, Qty 10

0

92151

Kawasaki 92151-7006

Bolt, 6x30
(Superseded to 92154-2697)

$0.99

$

In Stock, Qty 9

0

92151A

Kawasaki 92151-7014

Bolt (5x30)

$1.49

$

In Stock, Qty 5

0

92170

Kawasaki 92170-7001

Clamp

$2.99

$

In Stock, only 3 left!

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 18

0

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

$3.99

$

In Stock, Qty 5

0

214A

Kawasaki 214B0412

Screw-Pan
(Superseded to 214AA0412)

$0.99

$

In Stock, Qty 6

0

311

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

$4.49

$

In Stock, only 2 left!

0
