74172 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 3 OIL PAN/LUBRICATION ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

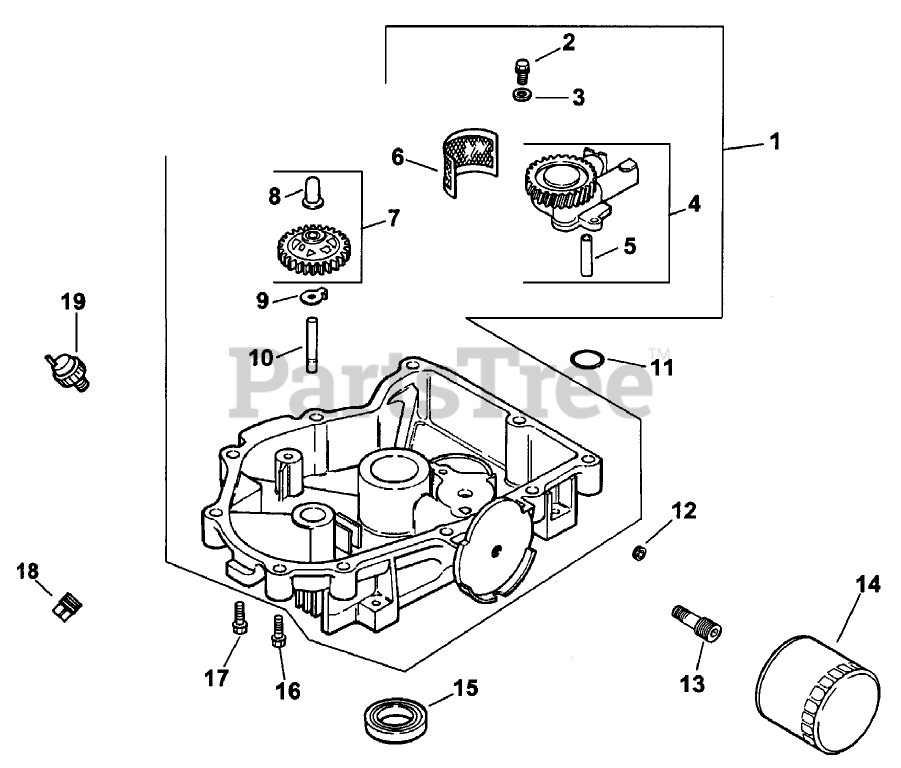

GROUP 3 OIL PAN/LUBRICATION ASSEMBLY Parts Diagram

  • Title

1

2419907

Pan, oil assembly (Includes 2-10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

4

2439308

Oil pump assembly (Includes 5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

2412305

Tube-Oil Pickup

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

2416226

Screen, oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

Kohler 24 043 12

Kit, governor gear w/pin (Includes 8)
(Superseded to 24 043 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$68.99

$

In Stock, Qty 12

0

8

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 9

0

9

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

10

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

11

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 1 left!

0

12

Kohler X-75-32

Plug-Hex
(Superseded to 25 139 62-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

13

Kohler 24 136 01

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

14

5205002

Filter-Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 20+

0

16

Kohler 24 086 17

Screw
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

17

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

18

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

19

Kohler 24 099 03

Switch-Pressure
(Superseded to 24 755 425-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

In Stock, only 1 left!

0
