74172 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099001999) (1999) LIFT HANDLES AND PLATES Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

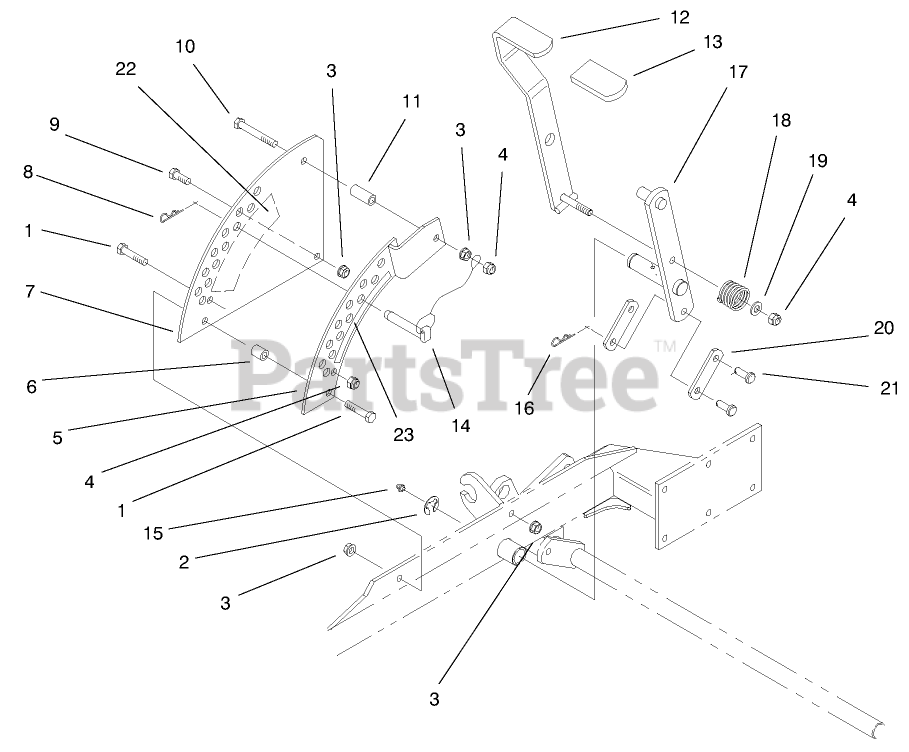

LIFT HANDLES AND PLATES Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro E652081

Plate-Deck Lift
(Superseded to 1-652081-01)

$

$

Not available

6

Toro E633080

Bushing
(Superseded to 1-633080)

$10.99

$

Usually ships in 3-6 days

0

7

Toro E653043

Plate
(Superseded to 1-653043-01)

$

$

Not available

8

Toro E806005

Hairpin
(Superseded to 1-806005)

$2.99

$

In Stock, Qty 20+

0

9

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

11

Toro E633082

Bushing
(Superseded to 1-633082)

$11.99

$

Usually ships in 3-6 days

0

12

Toro E652023

Lever-Lift
(Superseded to 1-652023-03)

$

$

Not available

13

Toro E633295

Grip-Lift Lever
(Superseded to 1-633295)

$7.99

$

In Stock, Qty 12

0

14

Toro E633097

Hitch Pin w/Lanyard
(Superseded to 1-633097)

$24.99

$

In Stock, only 2 left!

0

15

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

16

Toro E806003

Pin-Hair Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Toro 99-3922-03

ARM-LIFT

$

$

Not available

18

Toro E633325

Spring-Compression
(Superseded to 1-633325)

$5.49

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro E633068

Arm-Deck Lift
(Superseded to 1-633068)

$11.99

$

Usually ships in 3-6 days

0

21

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

22

Toro E653140

Decal-Deck Height
(Superseded to 1-653140)

$11.99

$

In Stock, Qty 5

0

23

Toro E653147

Decal-Deck Height
(Superseded to 1-653147)

$5.99

$

In Stock, Qty 8

0
