74171 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 9 ENGINE CONTROLS ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

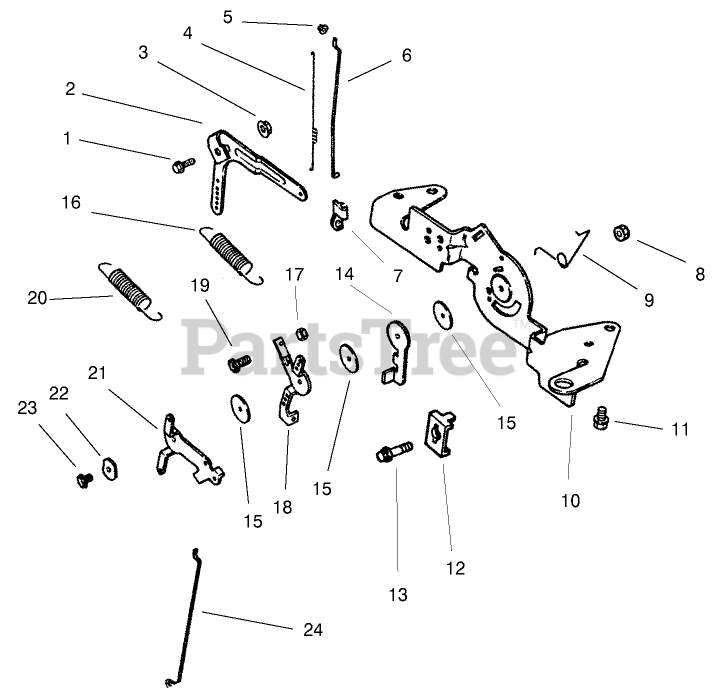

GROUP 9 ENGINE CONTROLS ASSEMBLY Parts Diagram

  • Title

10

Kohler 24 126 56

Bracket-Control
(Superseded to 24 126 56-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, only 1 left!

0

11

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 14

0

12

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 5

0

13

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

14

Kohler 24 090 07

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 1 left!

0

15

Kohler 24 468 01

Washer
(Superseded to 24 468 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 089 15

Carriage Bolt
(Superseded to 24 089 15-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

In Stock, only 1 left!

0

17

Kohler M-0446030

Nut
(Superseded to M-446030-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0

18

2409003

Lever-Throttle Control

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

Kohler M-0545020

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1

Kohler SM-0642025

Screw
(Superseded to SM-642025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

20

2408938

Spring-Throttle Limiter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

21

Kohler 24 090 05

Lever-Choke
(Superseded to 24 090 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 2 left!

0

22

Kohler 41 468 03

Washer-Wave
(Superseded to 41 468 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

23

Kohler M-0403025

Screw-Hex.
(Superseded to M-403025-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 1 left!

0

24

2407905

Linkage-Choke

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

2409014

Lever-Govenor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler M-0641060

Nut
(Superseded to M-641060)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 9

0

4

Kohler 24 089 01

Spring-Linkage
(Superseded to 24 089 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 4 left!

0

5

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 19

0

6

2407904

Linkage-Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 13

0

8

Kohler M-0547050

Nut
(Superseded to M-547050-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

9

2408903

Spring-Choke Return

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
