74171 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) FRONT FRAME ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

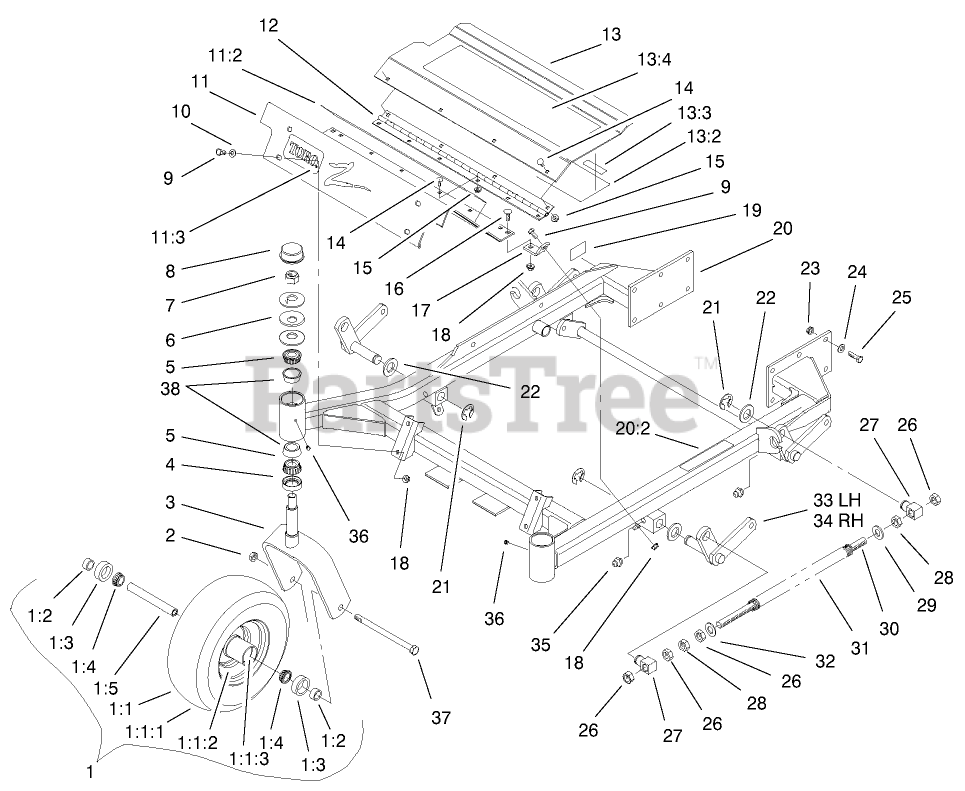

FRONT FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro E632586

Caster Wheel ASM
(Superseded to 1-634662)

$246.99

$

In Stock, only 2 left!

0

1:1

Toro E633582

Wheel & Tire ASM
(Superseded to 1-633582)

$151.99

$

In Stock, only 2 left!

0

1:1:1

Toro E633002

Tire
(Superseded to 1-633002)

$99.99

$

Usually ships in 3-6 days

0

1:1:2

Toro E633583

Wheel
(Superseded to 1-633583)

$100.99

$

Usually ships in 3-6 days

0

1:1:3

Toro 254-79

BEARING-ROLLER, CUP

$6.49

$

In Stock, Qty 12

0

1:2

Toro E633581

Spacer-Bearing
(Superseded to 1-633581)

$4.99

$

In Stock, Qty 14

0

1:3

Toro E633580

Seal-Bearing
(Superseded to 1-633580)

$9.49

$

In Stock, Qty 8

0

1:4

Toro 254-78

BEARING-CONE

$13.99

$

In Stock, Qty 7

0

1:5

Toro E633579

Spacer
(Superseded to 1-633579)

$13.99

$

In Stock, only 2 left!

0

2

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

3

Toro E632511

Caster
(Superseded to 116-8883)

$142.99

$

In Stock, only 2 left!

0

4

Toro E543511

Seal-Grease
(Superseded to 1-543511)

$12.99

$

In Stock, Qty 20+

0

5

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

6

Toro E633508

Washer-Bellevue
(Superseded to 1-633508)

$3.49

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 12

0

8

Toro E543513

Cap-Grease
(Superseded to 1-543513)

$7.99

$

In Stock, only 2 left!

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 99-3940

FLOORPAN-FRONT

$

$

Not available

11:2

Toro E633553

Pad-Antiskid
(Superseded to 1-633553)

$12.99

$

In Stock, Qty 6

0

11:3

Toro E633737

Decal-Z-Master
(Superseded to 1-633737)

$45.99

$

Usually ships in 3-6 days

0

12

Toro E653049

Hinge-Floorpan
(Superseded to 1-653049)

$47.99

$

Usually ships in 3-6 days

0

13

Toro 99-3930

FOOTREST ASM

$212.99

$

Usually ships in 3-6 days

0

13:2

Toro 99-3924

DECAL-SERVICE

$

$

Not available

13:3

Toro 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 7

0

13:4

Toro E633553

Pad-Antiskid
(Superseded to 1-633553)

$12.99

$

In Stock, Qty 6

0

14

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

15

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

16

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 99-3870-01

BRACKET-FLOORPAN

$

$

Not available

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 88-1270

Decal-Safety

$

$

Not available

20

Toro 99-3931

FRONT FRAME ASM
(Superseded to 106-6581)

$

$

Not available

20:2

Toro E633818

Decal
(Superseded to 1-633818)

$6.49

$

Usually ships in 3-6 days

0

21

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

22

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

23

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

25

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

27

Toro E633441

Swivel-Deck Mount
(Superseded to 1-633441)

$26.99

$

Usually ships in 3-6 days

0

28

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

29

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro E653011

Rod-Deck Lift
(Superseded to 1-653011)

$21.99

$

Usually ships in 3-6 days

0

31

Toro E653009

Spring-Lift Assist
(Superseded to 1-653009)

$17.99

$

Usually ships in 3-6 days

0

32

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

33

Toro 99-3871-01

LH LIFT ARM ASM

$121.99

$

Usually ships in 3-6 days

0

34

Toro 99-3872-01

RH LIFT ARM ASM

$123.99

$

Usually ships in 3-6 days

0

35

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

36

Toro E811010

Plug
(Superseded to 1-811010)

$5.49

$

In Stock, Qty 11

0

37

Toro E800339

Screw-HH
(Superseded to 325-36)

$8.49

$

In Stock, Qty 16

0

38

Toro 254-72

BEARING-CUP, TAPERED

$9.99

$

In Stock, Qty 11
