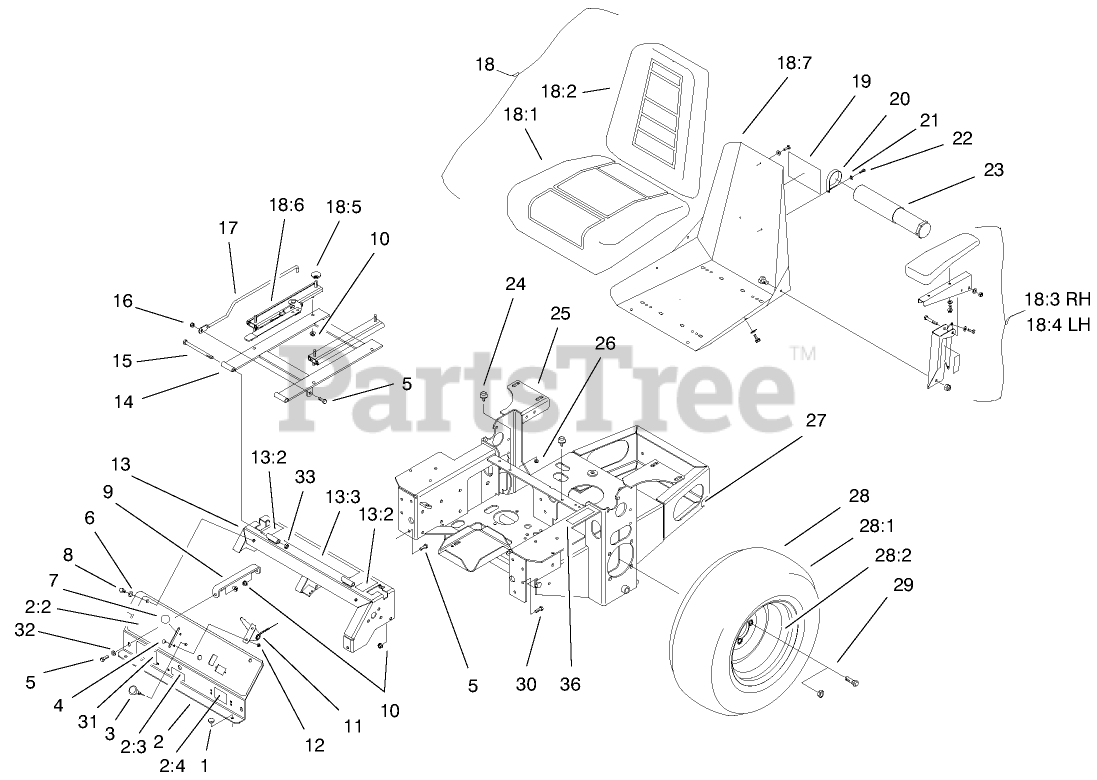

74171 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) MAIN FRAME Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

MAIN FRAME Parts Diagram

  • Title

1

Toro E513658

Bumper
(Superseded to 1-513658)

$6.49

$

In Stock, Qty 11

0

2

Toro 99-3932

CONTROL PANEL ASM

$

$

Not available

2:2

Toro 99-3942

DECAL-PANEL, CONTROL

$45.99

$

Usually ships in 3-6 days

0

2:3

Toro E633346

Decal-Fuel Valve
(Superseded to 1-633346)

$8.49

$

Usually ships in 3-6 days

0

2:4

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

3

Toro E603336

Cable-Choke
(Superseded to 1-603336)

$41.99

$

In Stock, only 2 left!

0

4

Toro E807513

Bolt-CARR
(Superseded to 1-807513)

$2.99

$

In Stock, Qty 15

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro E513592

Knob
(Superseded to 1-513592)

$6.99

$

In Stock, Qty 10

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro E653089

Bracket-Panel,Instrument
(Superseded to 103-7935-03)

$

$

Not available

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro E633696

Cable
(Superseded to 1-633696)

$62.99

$

In Stock, only 2 left!

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 99-3933

CONSOLE ASM

$

$

Not available

13:2

Toro E633354

Decal-Motion Control
(Superseded to 1-633354)

$

$

Not available

13:3

Toro E513747

Decal-Battery
(Superseded to 1-513747)

$7.49

$

Usually ships in 3-6 days

0

14

Toro E632187

Frame-Seat
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

15

Toro 321-21

SCREW-HH

$19.99

$

Usually ships in 3-6 days

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro E653148

Rod-Hold Up, Seat
(Superseded to 1-653148)

$

$

Not available

18

Toro E633705

Seat ASM
(Superseded to 1-633705)

$1406.99

$

Usually ships in 3-6 days

0

18:1

Toro E543407

Cushion
(Superseded to 103-3521)

$259.99

$

In Stock, Qty 5

0

18:2

Toro E633709

Cushion
(Superseded to 104-7754)

$514.99

$

In Stock, only 2 left!

0

18:3

Toro E633710

Armrest
(Superseded to 110-4163)

$94.99

$

Usually ships in 3-6 days

0

18:4

Toro E633711

Armrest
(Superseded to 110-4163)

$94.99

$

Usually ships in 3-6 days

0

18:5

Toro E543401

Spacer-Track
(Superseded to 1-543401)

$5.49

$

In Stock, Qty 8

0

18:6

Toro E523428

Track-Locking, 4"
(Superseded to 1-523428)

$

$

Not available

18:7

Toro E633859

Frame-Seat
(Superseded to 1-633859)

$191.99

$

In Stock, only 3 left!

0

19

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

20

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

21

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 7

0

23

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

24

Toro E523420

Bumper
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

25

Toro E652108

Frame-Engine Deck

$

$

Currently unavailable

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

27

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

28

Toro E653010

Wheel And Tire ASM
(Superseded to 1-653010)

$484.99

$

Usually ships in 3-6 days

0

28:1

Toro E653160

Tire
(Superseded to 1-653160)

$

$

Not available

28:2

Toro E653158

Wheel
(Superseded to 1-653158)

$182.99

$

Usually ships in 3-6 days

0

29

Toro E513011

Nut
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

29

Toro E633273

Wheel Bolt
(Superseded to 1-633273)

$6.99

$

Usually ships in 3-6 days

0

30

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

31

Toro 99-4604

DECAL

$

$

Not available

32

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

36

Toro E603845

Decal-Drive Wheel
(Superseded to 1-603845)

$40.99

$

Usually ships in 3-6 days

0
