74171 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) GROUP 8 FUEL SYSTEM ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

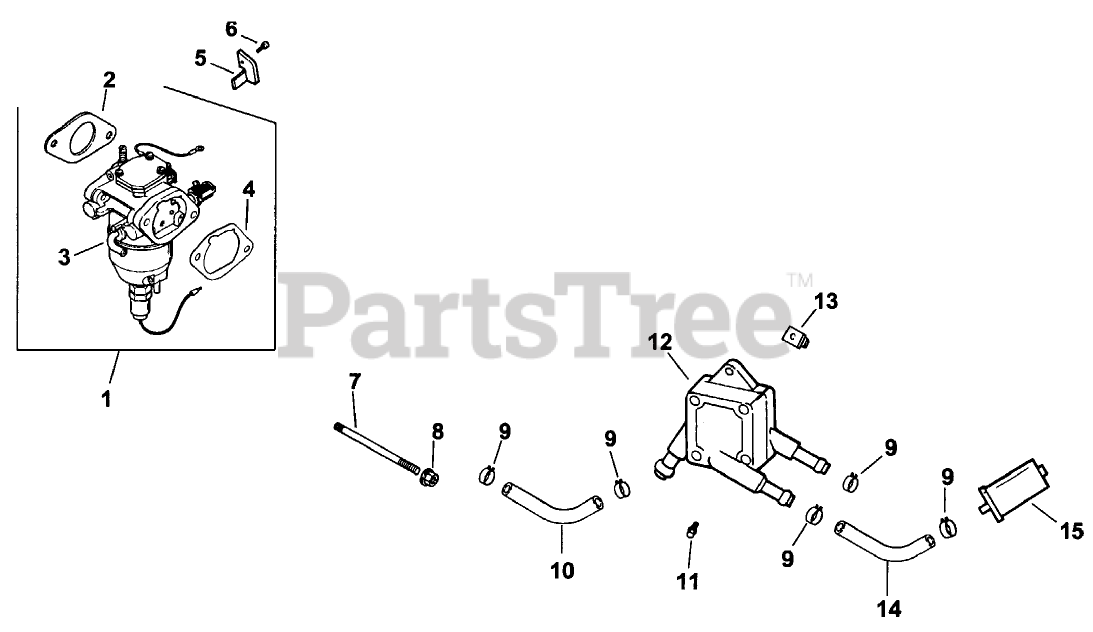

GROUP 8 FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

2485325

Kit, carburetor with gaskets (Includes 2-4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

2404115

Kit-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

2405325

Carburetor assembly (For information only not available separately)(Includes 24 757 18, 24 757 19, 24 757 20, 24 757 22)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

2404114

Gasket-A/C Base

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

2412653

Bracket, throttle stop

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Toro M-0259005

Screw, pan hd.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

7

Kohler M-0629095

Stud

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler M-0641060

Nut
(Superseded to M-641060)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 6

0

9

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

10

2435303

Line-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

2408612

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

2439304

Pump-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

14

2535310

Line fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

Kohler 24 050 02

Filter-Fuel
(Superseded to 24 050 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

2475718

Kit, overhaul w/gaskets (Includes air cleaner base gasket, carburetor gasket, throttle adjusting screw, gasket, idle adjusting screw, float, float pin, float valve, float chamber gasket, throttle adjusting screw spring, idle adjusting screw spring, p

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2475718

Kit, overhaul w/gaskets (Includes air cleaner base gasket, carburetor gasket, throttle adjusting screw, gasket, idle adjusting screw, float, float pin, float valve, float chamber gasket, throttle adjusting screw spring, idle adjusting screw spring, p

Note: Not illustrated

$

$

Not available

2475719

Kit, choke repair w/gaskets (Includes air cleaner base gasket, carburetor gasket, valve set screw, choke valve, choke shaft filter, choke arm return spring, choke lever ring, choke collar, choke shaft assembly, choke lever assembly)

Note: Not illustrated

$

$

Not available

2475719

Kit, choke repair w/gaskets (Includes air cleaner base gasket, carburetor gasket, valve set screw, choke valve, choke shaft filter, choke arm return spring, choke lever ring, choke collar, choke shaft assembly, choke lever assembly)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2475720

Kit, gasket (Includes air cleaner base gasket, carburetor gasket, float chamber gasket, passage cover gasket)

Note: Not illustrated

$

$

Not available

2475720

Kit, gasket (Includes air cleaner base gasket, carburetor gasket, float chamber gasket, passage cover gasket)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2475722

Kit, solenoid replacement w/gaskets (Includes air cleaner base gasket, carburetor chamber screw gasket, solenoid holder, solenoid valve)

Note: Not illustrated

$

$

Not available

2475722

Kit, solenoid replacement w/gaskets (Includes air cleaner base gasket, carburetor chamber screw gasket, solenoid holder, solenoid valve)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
