74171 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) FUEL SYSTEM ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

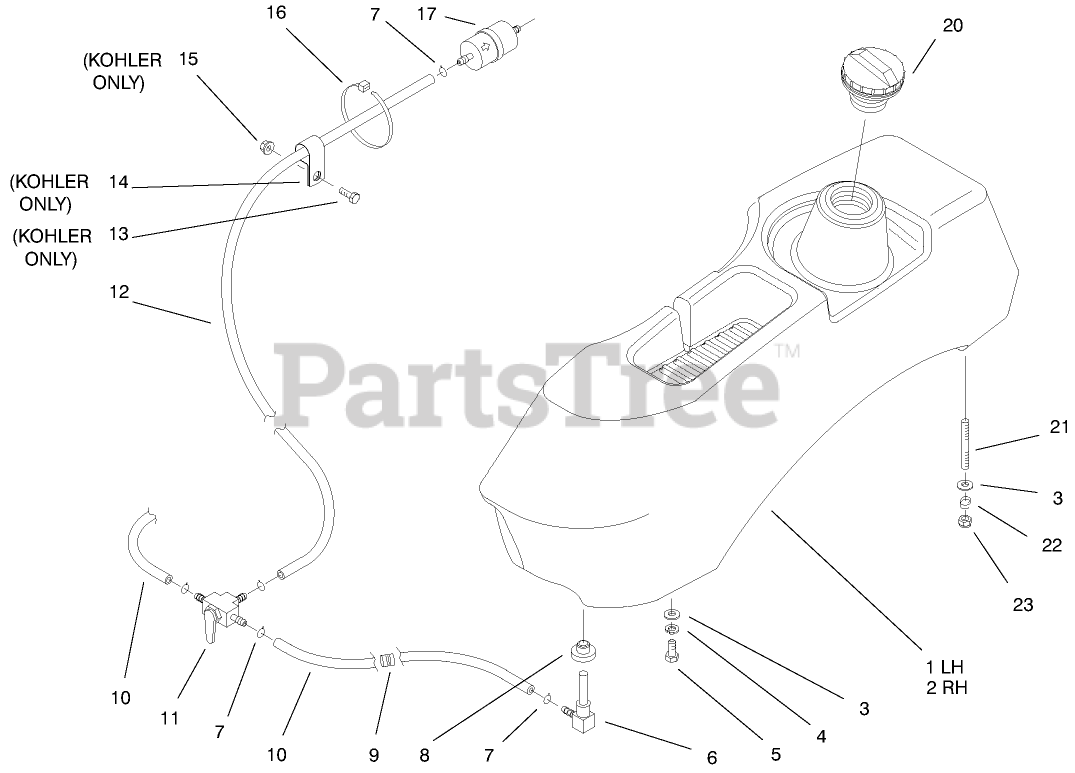

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 99-4606

TANK-FUEL, LH
(Superseded to 108-2753)

$

$

Not available

2

Toro 99-4605

TANK-FUEL, RH
(Superseded to 105-3639)

$640.99

$

Usually ships in 3-6 days

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

6

Toro E543277

Elbow
(Superseded to 1-543277)

$11.99

$

In Stock, Qty 5

0

7

Toro E303007

Clamp
(Superseded to 1-303007)

$5.49

$

In Stock, Qty 13

0

8

Toro E513645

Bushing
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

9

Toro E543296

Grommet-Fuel Line
(Superseded to 1-543296)

$8.49

$

In Stock, only 4 left!

0

10

Toro E543526

Fuel Line
(Superseded to 109-0302)

$12.99

$

In Stock, Qty 5

0

11

Toro E633347

Valve-Fuel Line
(Superseded to 1-633347)

$74.99

$

In Stock, only 3 left!

0

12

Toro E633348

Fuel Line
(Superseded to 1-633348)

$20.99

$

In Stock, only 1 left!

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

16

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

17

Toro 2505002

Filter-Fuel

$

$

Currently unavailable

20

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$32.99

$

In Stock, only 1 left!

0

21

Toro E653314

Stud
(Superseded to 1-653314)

$

$

Not available

22

Toro E633349

Spring-Fuel Tank
(Superseded to 1-633349)

$5.49

$

In Stock, only 2 left!

0

23

Toro E804256

Nut-Lock
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0
