74171 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) DECALS, DEFLECTOR, COVER AND ROLLERS ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

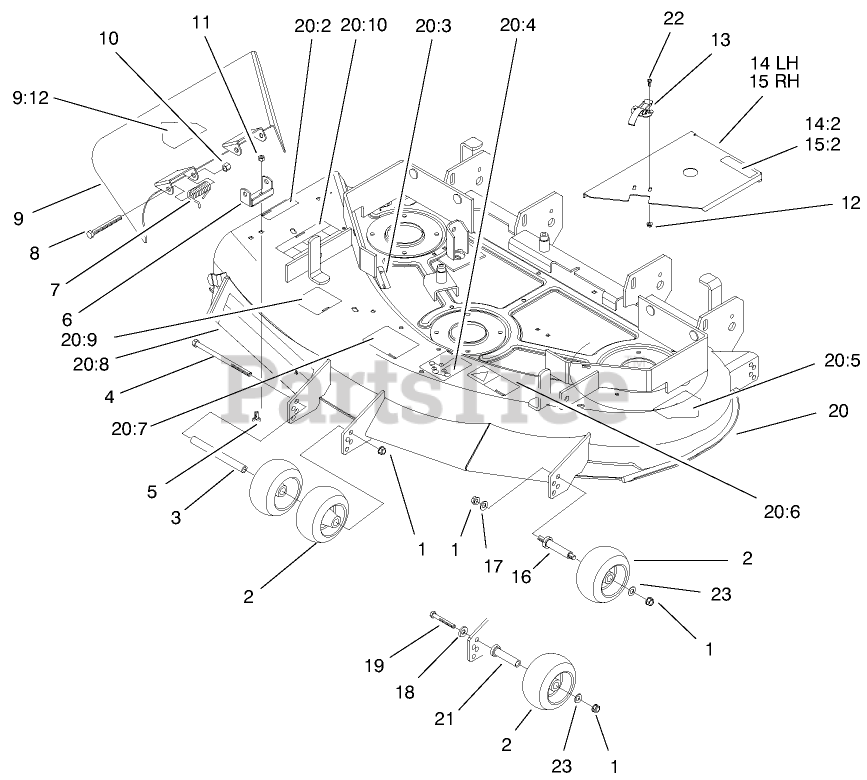

DECALS, DEFLECTOR, COVER AND ROLLERS ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

2

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

3

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

4

Toro 323-28

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

5

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

6

Toro 29-5590-01

BRACKET-PIVOT

$35.99

$

Usually ships in 3-6 days

0

7

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

8

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

9

Toro 99-3902

CHUTE-DISCHARGE
(Superseded to 13-3899)

$

$

Not available

9:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

13

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

14

Toro 99-3896

LH COVER ASM

$173.99

$

Usually ships in 3-6 days

0

14:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

15

Toro 99-3929

RH COVER ASM

$151.99

$

Usually ships in 3-6 days

0

15:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

16

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

17

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

18

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

20

Toro 99-3901

44" Deck ASM
(Superseded to 106-5884)

$4364.99

$

Usually ships in 3-6 days

0

20:2

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

20:3

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

20:4

Toro 99-3876

Decal-Belt Routing
(Superseded to 99-3943)

$7.99

$

In Stock, only 1 left!

0

20:5

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

20:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

20:7

Toro 98-3798

DECAL-WHEEL, GAGE

$18.99

$

Usually ships in 3-6 days

0

20:8

Toro 98-8028

DECAL

$

$

Not available

20:9

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

20:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

21

Toro 98-3777

SPACER-WHEEL

$56.99

$

Usually ships in 3-6 days

0

22

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

23

Toro E373034

Washer
(Superseded to 1-373034)

$3.49

$

In Stock, Qty 20+

0
