74170 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) ELECTRIC-EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS10 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

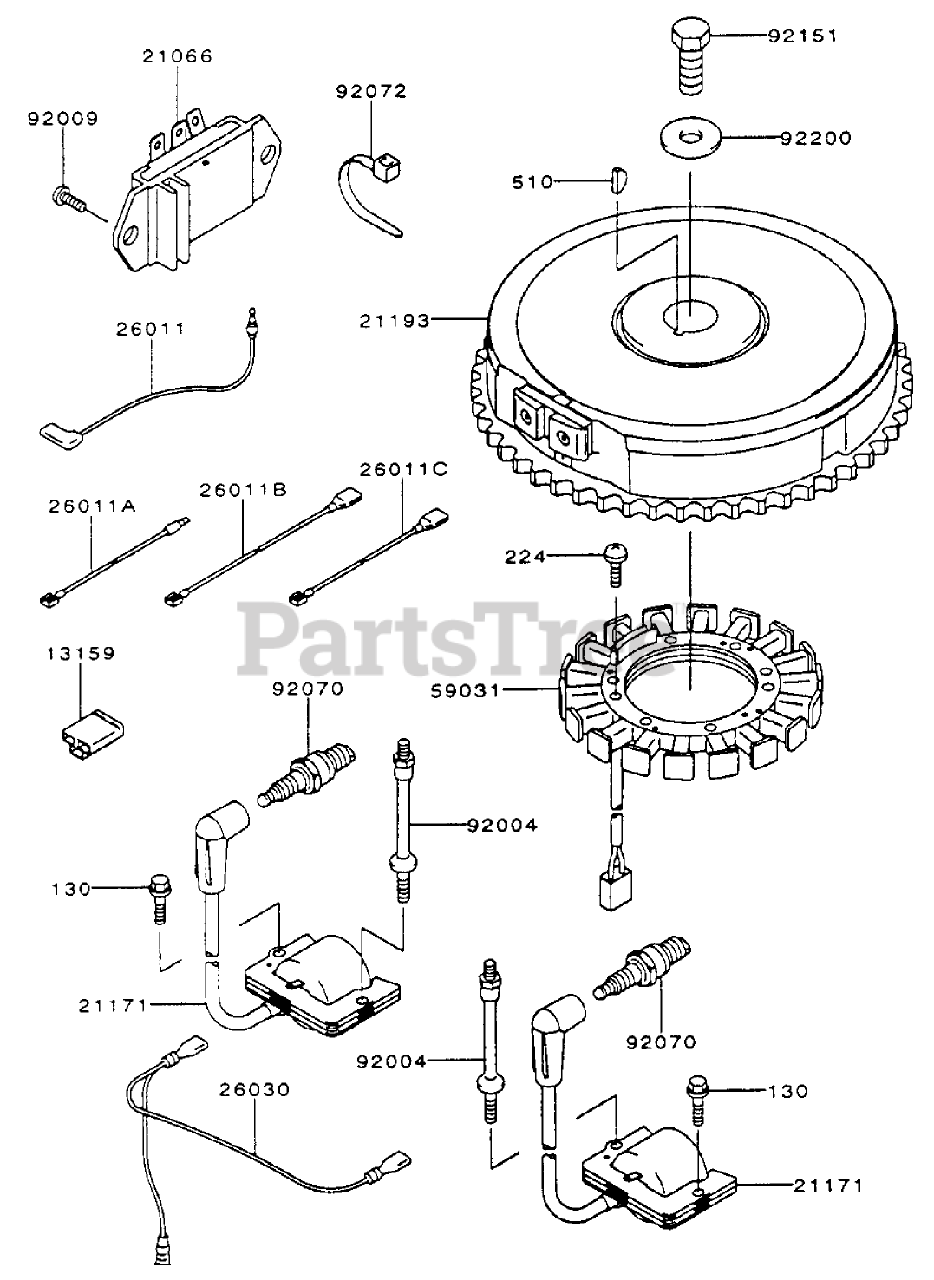

ELECTRIC-EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS10 Parts Diagram

  • Title

13159

Kawasaki 13159-7001

Connector

$1.49

$

In Stock, Qty 7

0

21066

Kawasaki 21066-7001

Regulator-Voltage
(Superseded to 21066-7011)

$77.99

$

In Stock, Qty 8

0

21171

Toro 21171-7001

Ignition Coil ASM

$

$

Currently unavailable

21193

Toro 21193-7001

Flywheel-Assy

$

$

Currently unavailable

26011

Kawasaki 26011-7001

Wire-Lead

$3.99

$

In Stock, Qty 10

0

26011A

Kawasaki 26011-7002

Wire-Lead

$2.99

$

In Stock, only 1 left!

0

26011B

Kawasaki 26011-7003

Wire-Lead

$3.49

$

Usually ships in 2-5 days

0

26011C

Kawasaki 26011-7004

Wire-Lead

$2.99

$

Usually ships in 2-5 days

0

26030

Kawasaki 26030-7001

Harness

$10.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7001

Coil-Charging
(Superseded to 59031-7009)

$128.99

$

Usually ships in 2-5 days

0

92004

Toro 92004-2147

Stud

$

$

Currently unavailable

92009

Kawasaki 92009-2308

Screw

$0.99

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7001

Plug-Spark (RCJ8Y)
(Superseded to 92070-7003)

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7001

Band
(Superseded to 92072-7003)

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

$4.99

$

In Stock, only 1 left!

0

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN (5X20)
(Superseded to 224AA0520)

$0.99

$

In Stock, Qty 11

0

510

Kawasaki 510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 11

0

92220

Toro 92220-7002

Washer

$

$

Currently unavailable
