74170 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) AIR-FILTER/MUFFLER ASSEMBLY KAWASAKI FH500V-AS10 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

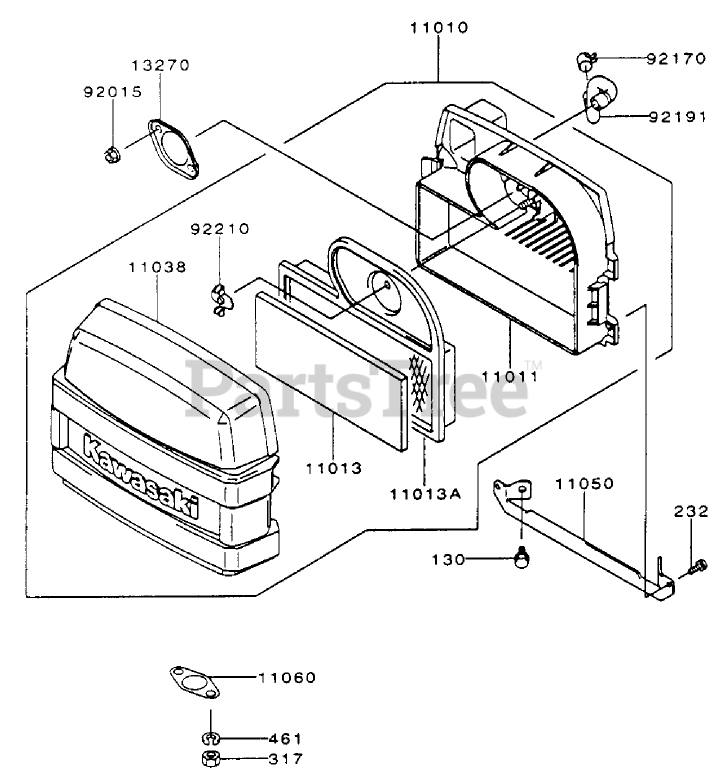

AIR-FILTER/MUFFLER ASSEMBLY KAWASAKI FH500V-AS10 Parts Diagram

  • Title

11010

Kawasaki 11010-7001

Air Filter ASM
(Superseded to 11010-7007)

$72.99

$

In Stock, Qty 6

0

11011

Toro 11011-7001

Case-Air Filter

$

$

Currently unavailable

11013

Kawasaki 11013-7001

Element-FILTER, AIR
(Superseded to 11013-7033)

$5.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7002

Element-Filter, AIR

$21.99

$

In Stock, Qty 20+

0

11038

Toro 11038-7001

Case-ASM-Air Filter

$

$

Not available

11050

Kawasaki 11050-7006

Bracket

$9.49

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7006

Gasket, Muffler
(Superseded to 11060-7021)

$2.49

$

In Stock, Qty 20+

0

13270

Kawasaki 13270-7001

Plate

$5.49

$

In Stock, only 2 left!

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-7003

Clamp

$1.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-7001

Tube

$

$

Not available

92210

Kawasaki 92210-7004

NUT (M6)

$3.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

232

Kawasaki 232B0514

SCREW-PAN
(Superseded to 232AA0514)

$0.99

$

In Stock, only 3 left!

0

317

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Toro 461F0800

Washer-Spring (8mm)

$

$

Currently unavailable
