74170 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) VALVE/CAMSHAFT ASSEMBLY KAWASAKI FH500V-AS10 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

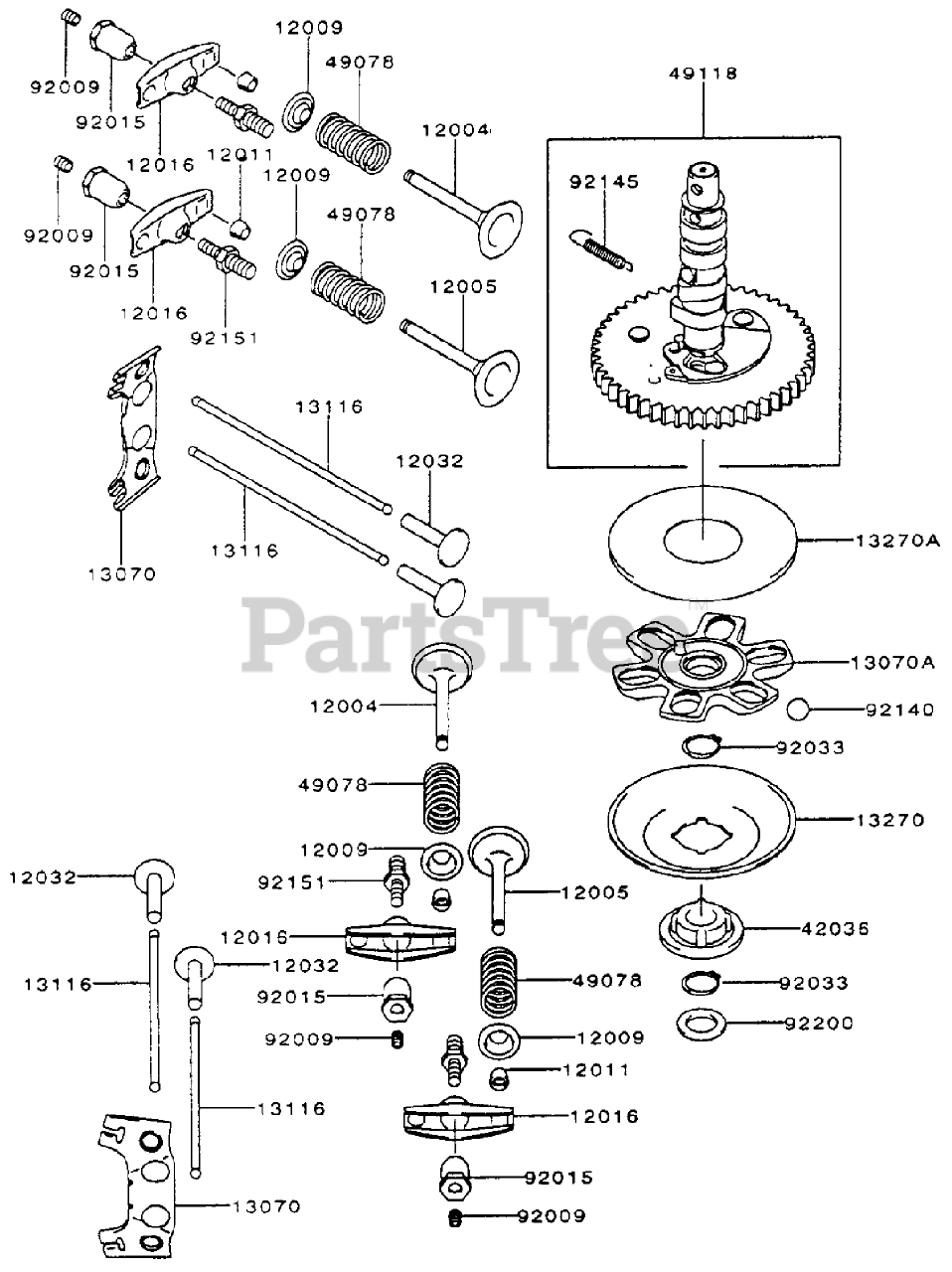

VALVE/CAMSHAFT ASSEMBLY KAWASAKI FH500V-AS10 Parts Diagram

  • Title

12004

Kawasaki 12004-7001

Valve-Intake
(Superseded to 12004-7003)

$16.99

$

In Stock, Qty 20+

0

12005

Kawasaki 12005-7001

Valve-Exhaust
(Superseded to 12005-7003)

$29.99

$

In Stock, Qty 20+

0

12009

Kawasaki 12009-7001

RETAINER-SPRING, VALVE

$2.49

$

In Stock, Qty 20+

0

12011

Kawasaki 12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-7001

Arm-Rocker
(Superseded to 12016-7008)

$7.99

$

In Stock, Qty 12

0

12032

Kawasaki 12032-7001

Tappet

$8.99

$

In Stock, Qty 20+

0

13070

Kawasaki 13070-7001

Guide

$4.99

$

In Stock, Qty 20+

0

13070A

Kawasaki 13070-7002

Guide
(Superseded to 13070-7004)

$5.99

$

In Stock, Qty 20+

0

13116

Kawasaki 13116-2057

Rod-Push

$4.99

$

In Stock, Qty 20+

0

13270

Kawasaki 13270-7002

Plate
(Superseded to 13271-7021)

$5.49

$

In Stock, Qty 19

0

13270A

Kawasaki 13270-7003

Plate
(Superseded to 13271-7007)

$5.49

$

In Stock, Qty 11

0

42036

Toro 42036-7001

Sleeve

$

$

Currently unavailable

49078

Kawasaki 49078-7001

SPRING-VALVE, ENGINE
(Superseded to 49078-2064)

$6.99

$

In Stock, Qty 20+

0

49118

Kawasaki 49118-7002

Camshaft-Comp
(Superseded to 12043-7001)

$

$

Not available

92009

Kawasaki 92009-2341

Screw

$2.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-2253

Nut

$4.49

$

In Stock, Qty 20+

0

92033

Kawasaki 92033-7001

Ring-Snap
(Superseded to 92033-0727)

$0.99

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7002

Ball
(Superseded to 92140-7005)

$

$

Not available

92145

Kawasaki 92145-7001

Spring
(Superseded to 921451653)

$1.49

$

In Stock, Qty 20+

0

92151

Toro 92151-7001

Bolt

$

$

Currently unavailable

92200

Kawasaki 92200-7001

Washer

$1.99

$

In Stock, Qty 11

0
