74170 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

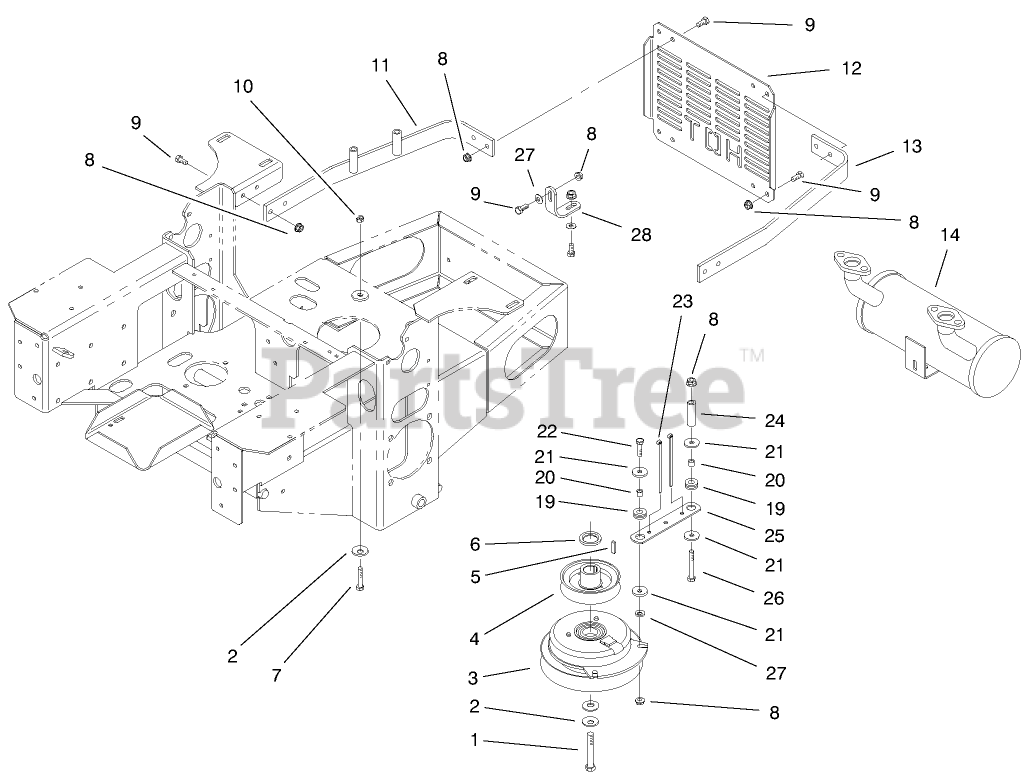

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro E800820

Screw-HH
(Superseded to 3212-12)

$3.49

$

In Stock, Qty 13

0

2

Toro E603610

Disc-Spring
(Superseded to 1-603610)

$5.49

$

In Stock, Qty 20+

0

3

Toro E653048

Clutch
(Superseded to 109-9276)

$591.99

$

In Stock, only 1 left!

0

4

Toro E653035

Sheave-Pump Drive
(Superseded to 1-653035)

$68.99

$

In Stock, only 1 left!

0

5

Toro E807259

Key
(Superseded to 1-807259)

$2.49

$

In Stock, Qty 20+

0

6

Toro E543214

Spacer-Crankshaft
(Superseded to 1-543214)

$

$

Not available

7

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro E652146

Strap-Guard, Engine
(Superseded to 1-652146-03)

$

$

Not available

12

Toro E653095

Shield-Guard, Engine
(Superseded to 1-653095-03)

$

$

Not available

13

Toro E653093

Strap-Guard, Engine
(Superseded to 103-3164-03)

$

$

Not available

14

Toro E653194

Muffler
(Superseded to 105-3634)

$781.99

$

Usually ships in 3-6 days

0

19

Toro E633630

Grommet
(Superseded to 1-633630)

$5.99

$

In Stock, Qty 14

0

20

Toro E633545

Spacer
(Superseded to 1-633545)

$2.99

$

In Stock, Qty 20+

0

21

Toro E613235

Washer
(Superseded to 1-613235)

$1.99

$

In Stock, Qty 19

0

22

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

23

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

24

Toro E523406

Bushing-Mount, Seat
(Superseded to 103-2614)

$

$

Not available

25

Toro E633543

Strap
(Superseded to 1-633543-03)

$14.99

$

In Stock, only 2 left!

0

26

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro E653196

Bracket-Muffler
(Superseded to 1-653196)

$

$

Not available

29

Engine-17hp Kawasaki

$

$

Not available
