74166 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) SEAT AND ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

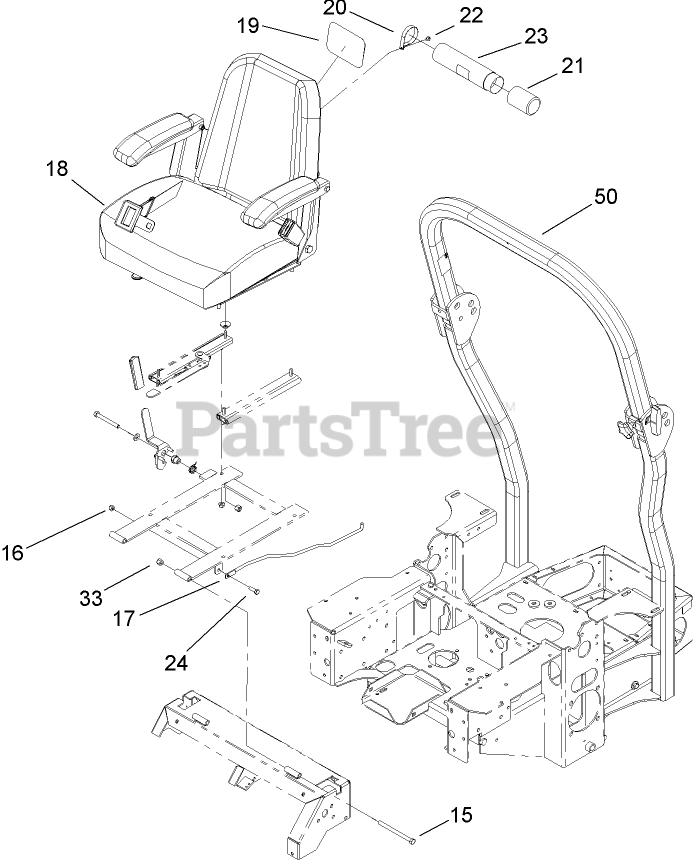

SEAT AND ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY Parts Diagram

  • Title
15

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 103-1731

ROD-RETAINER, SEAT

$21.99

$

In Stock, only 1 left!

0

18

Toro 107-1867

SEAT ASM
(Superseded to 110-0837)

$1662.99

$

Usually ships in 3-6 days

0

19

Toro 99-4693

DECAL

$25.99

$

In Stock, only 3 left!

0

20

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

21

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0

22

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

50

Toro 107-3066

ROPS ASM

$

$

Not available
