74162 (Z 148) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240003000) (2004) BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CV493S-27529 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

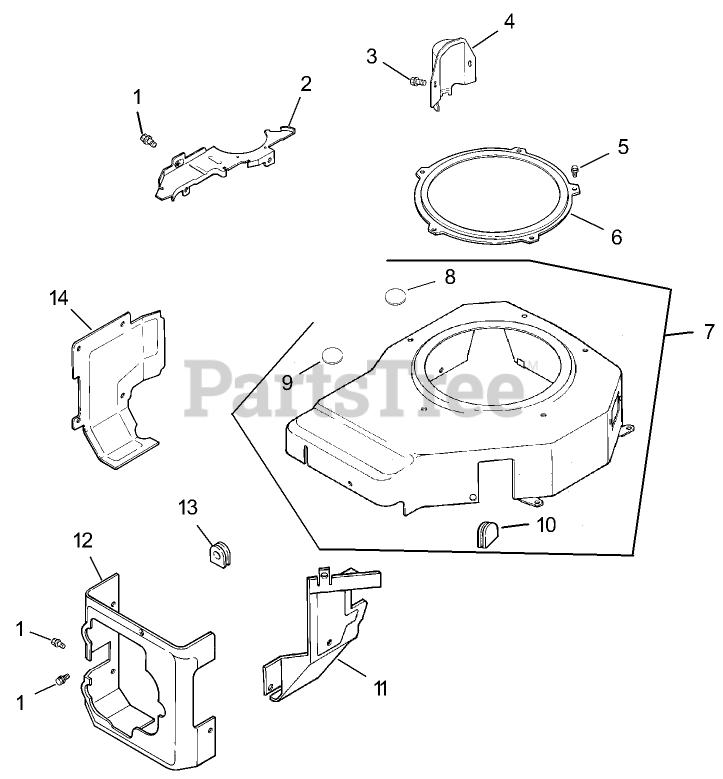

BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CV493S-27529 Parts Diagram

  • Title
1

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

2

Kohler 12 146 07-S

Plate-Housing, Blower

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

3

Kohler M-550010-S

Screw-HF (M5x0.8x10)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

4

Kohler 12 096 33-S

Cover-Starter

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 12 314 07-S

Guard-Stylized
(Superseded to 12 755 65-S)

Note: Obtain parts from www.kohlerplus.com

$52.99

$

In Stock, only 1 left!

0

6

Kohler 12 314 10-S

Guard-Screen, Grass

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 12 027 71-S

Housing, blower (Includes 8-10)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 25 139 17-S

Plug-Button (1/2)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

10

Kohler 12 313 05-S

Grommet

Note: Obtain parts from www.kohlerplus.com

$21.99

$

Usually ships in 2-5 days

0

11

Kohler 12 063 18-S

Baffle (Intake Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 12 063 20-S

Baffle (Cylinder Head)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

Kohler 12 313 03-S

Grommet-Spark Plug

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

14

Kohler 12 063 19-S

Baffle-Cylinder

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 25 113 24-S

Decal-Screen, Grass
(Superseded to 24 113 499-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 113 24-S

Decal-Screen, Grass
(Superseded to 24 113 499-S)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 113 94-S

Decal-HP

Note: Not illustrated

$17.99

$

Usually ships in 2-5 days

0

Kohler 24 113 94-S

Decal-HP

Note: Obtain parts from www.kohlerplus.com

$17.99

$

Usually ships in 2-5 days

0
