74161 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240001000) (2004) PUMP IDLER AND BELT ASSEMBLY Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

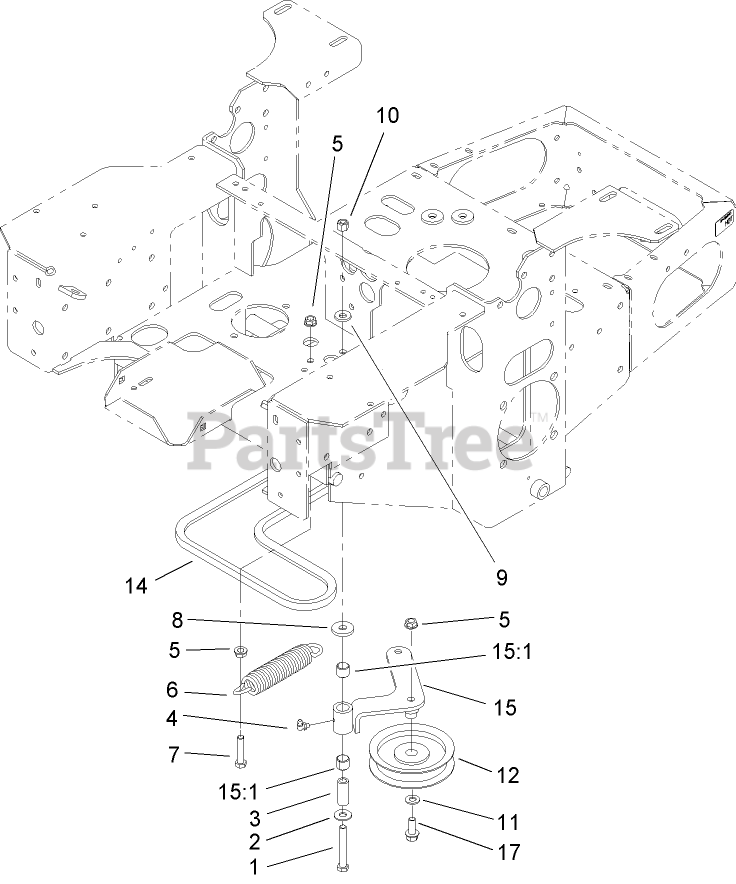

PUMP IDLER AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 6

0

4

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

6

Toro 103-4480

SPRING-EXTENSION
(Superseded to 116-0032)

$31.99

$

In Stock, only 1 left!

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$34.99

$

In Stock, only 2 left!

0

14

Toro 107-3960

BELT

$52.99

$

In Stock, only 2 left!

0

15

Toro 103-4482

IDLER ARM ASM

$109.99

$

Usually ships in 3-6 days

0

15:1

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

17

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0
