74161 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240001000) (2004) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH500V-ES10 Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

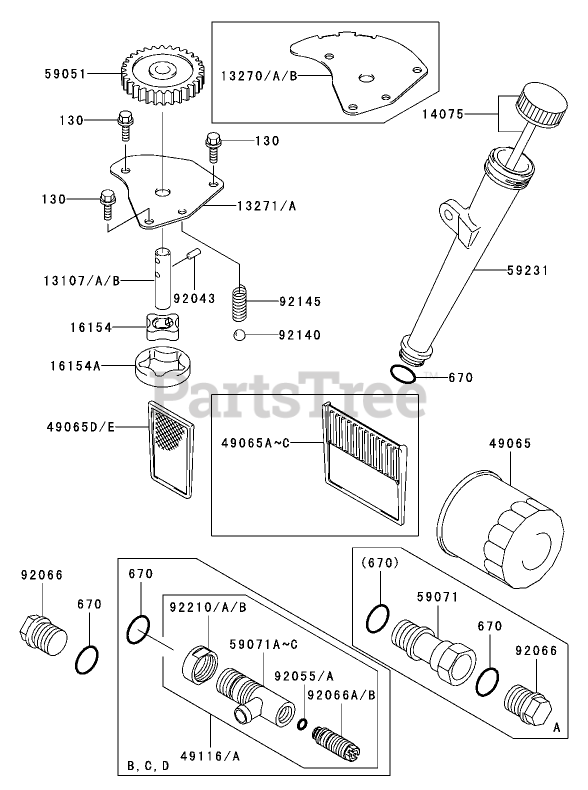

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH500V-ES10 Parts Diagram

  • Title

13107A

Kawasaki 13107-7009

Shaft
(Superseded to 13107-0749)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 2 left!

0

13271

Kawasaki 13271-7017

Plate

Note: Obtain Parts From Kawasaki

$4.99

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-7001

Cap ASM
(Superseded to 14075-7009)

Note: Obtain Parts From Kawasaki

$

$

Not available

16154

Kawasaki 16154-2053

ROTOR-PUMP (IN)

Note: Obtain Parts From Kawasaki

$12.99

$

In Stock, Qty 5

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP (OUT)

Note: Obtain Parts From Kawasaki

$9.49

$

In Stock, Qty 5

0

49065

Toro 49065-2078

Filter-Oil
(Superseded to 49065-2071)

Note: Obtain Parts From Kawasaki

$

$

Not available

49065D

Kawasaki 49065-7001

Filter-Oil

Note: Obtain Parts From Kawasaki

$3.49

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-7004

Gear-Spur
(Superseded to 59051-6001)

Note: Obtain Parts From Kawasaki

$

$

Not available

59231

Kawasaki 59231-7001

Filler
(Superseded to 59231-7005)

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 6

0

92043

Kawasaki 92043-7003

Pin

Note: Obtain Parts From Kawasaki

$

$

Not available

92066

Kawasaki 92066-7003

Plug
(Superseded to 920660774)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 8

0

92140

Kawasaki 92140-7003

Ball

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 11

0

92145

Kawasaki 92145-7002

Spring

Note: Obtain Parts From Kawasaki

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 15

0

670

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 20+

0
