74161 TE (Z 147) - Toro 112cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240001000) (2004) DECK AND DEFLECTOR ASSEMBLY NO. 106-6565 Parts Diagram

112cm Z Master Zero-Turn Mower, Side-Discharge Deck

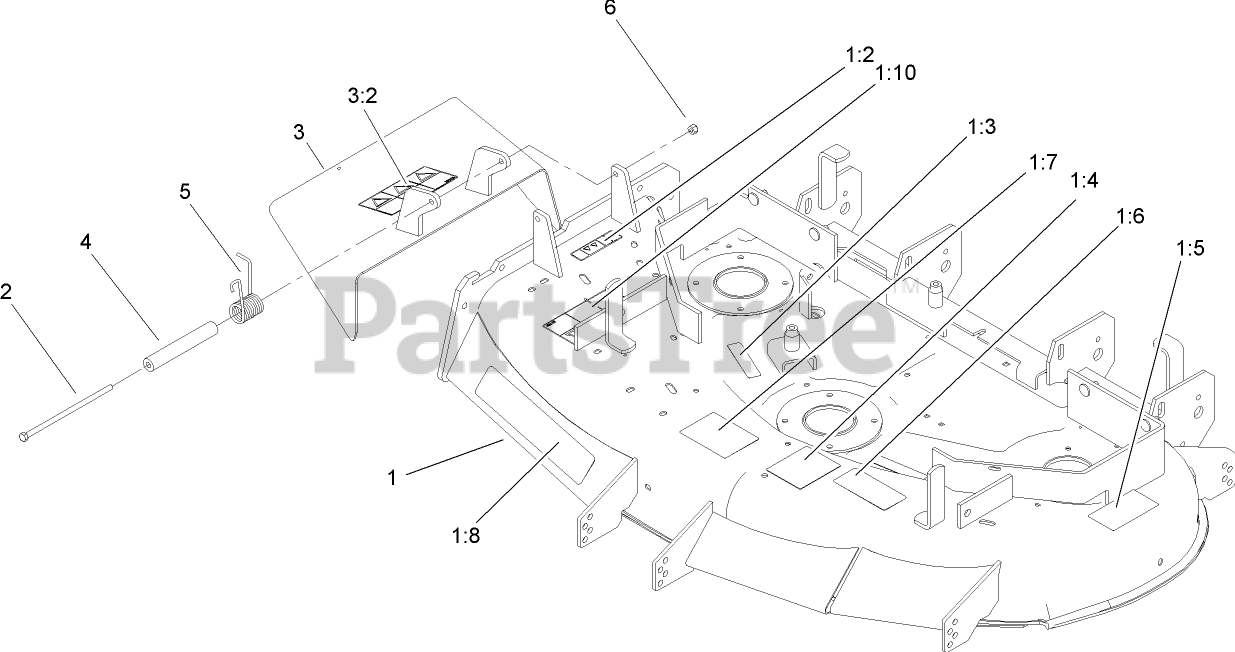

DECK AND DEFLECTOR ASSEMBLY NO. 106-6565 Parts Diagram

  • Title

1

Deck ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

1:3

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

1:4

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

1:5

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

1:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

1:7

Toro 99-8939

DECAL-ANTI SCALP

$28.99

$

Usually ships in 3-6 days

0

1:8

Toro 100-3967

DECAL

$

$

Not available

1:10

Toro 93-7824

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

2

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

3

Toro 105-4626

Deflector ASM

$

$

Not available

3:2

Toro 93-7824

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

4

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

5

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
