74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) WHEEL/BRAKE ASM Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

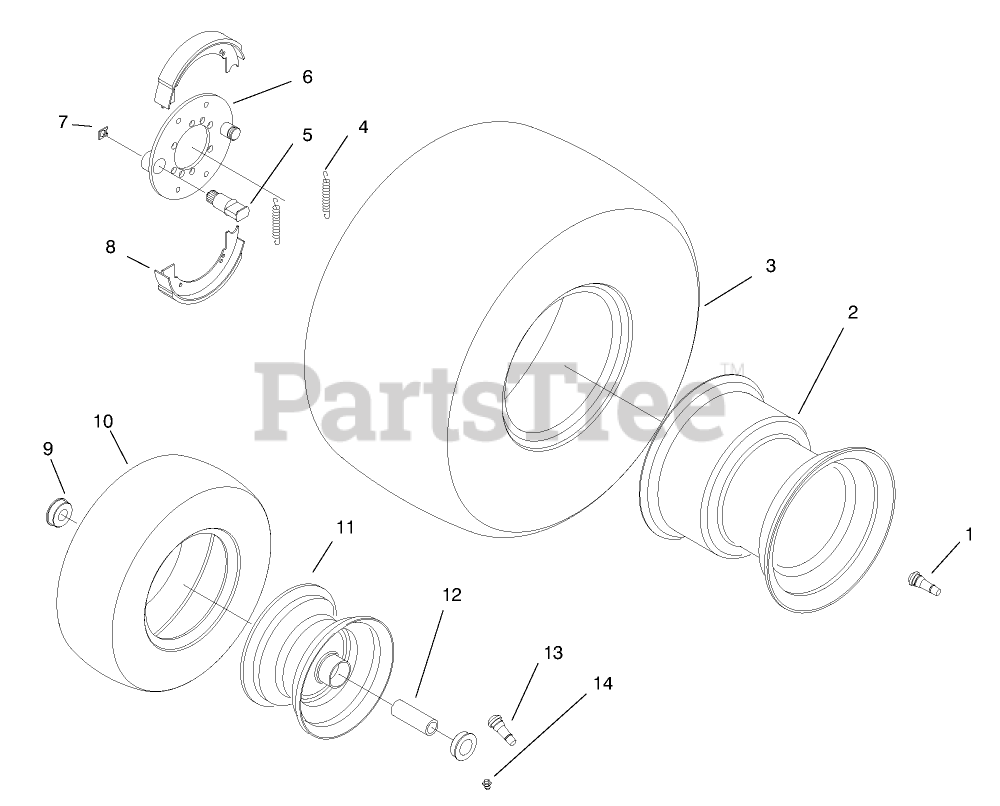

WHEEL/BRAKE ASM Parts Diagram

  • Title

1

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

2

Toro 94-6116

WHEEL-REAR

$171.99

$

In Stock, only 1 left!

0

3

Toro 116973

TIRE 22 X 11.00-8
(Superseded to 121-9072)

$163.99

$

Usually ships in 3-6 days

0

4

Toro 70-9880

SPRING-RETURN

$12.99

$

Usually ships in 3-6 days

0

5

Toro 70-9860

Cam Shaft
(Superseded to 104-7708)

$51.99

$

Usually ships in 3-6 days

0

6

Toro 70-9870

PLATE-BACKING

$221.99

$

Usually ships in 3-6 days

0

7

Toro 70-9850

Clip
(Superseded to 104-7708)

$51.99

$

Usually ships in 3-6 days

0

8

Toro 70-9840

SHOE-BRAKE

$72.99

$

In Stock, only 1 left!

0

9

Toro 10205

BEARING BALL

$

$

Not available

10

Toro 83-3560

TIRE-FRT 13X5.00-6

$

$

Not available

11

Toro 94-6124

WHEEL - FRONT

$

$

Not available

12

Toro 10204

SPACER FRT WHEEL INN

$

$

Not available

13

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
