74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) STEERING SYSTEMS Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

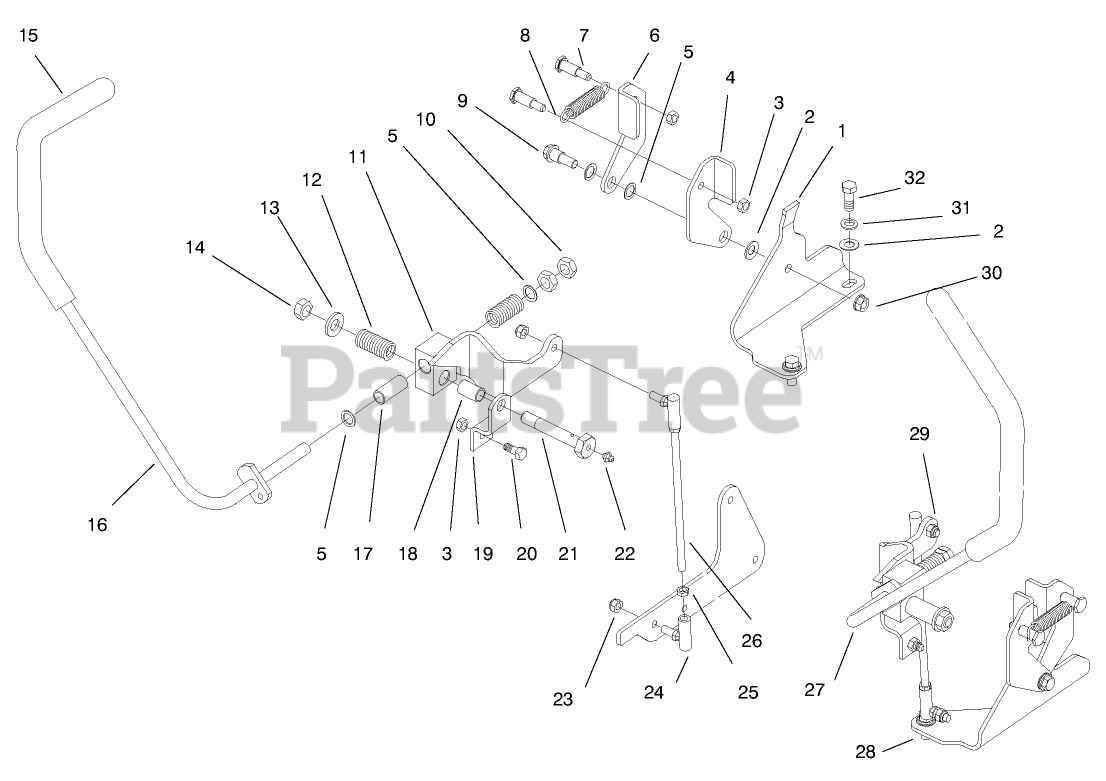

STEERING SYSTEMS Parts Diagram

  • Title
1

Toro 94-6169

Bracket-Neutral
(Superseded to 94-6169-03)

$

$

Not available

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 94-6171

Lever-Neutral
(Superseded to 94-6171-03)

$

$

Not available

5

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

6

Toro 94-6172

Lever-Neutral
(Superseded to 94-6172-03)

$

$

Not available

7

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 2 left!

0

8

Toro 94-6212

SPRING - EXTENSION

$

$

Not available

9

Toro 94-6177

BOLT-SHOULDER

$9.99

$

Usually ships in 3-6 days

0

10

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

11

Toro 94-6174

Steering Arm ASM
(Superseded to 94-6174-03)

$237.99

$

Usually ships in 3-6 days

0

12

Toro 113632

SPRING

$

$

Not available

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 94-6255

GRIP - CUSHION

$

$

Not available

16

Toro 94-6253

RH Lever ASM
(Superseded to 94-6253-03)

$

$

Not available

17

Toro 113675

BUSHING-STR LVR PVT

$

$

Not available

18

Toro 115295

BUSHING

$8.49

$

Usually ships in 3-6 days

0

19

Toro 79-0560

STRAP-PIVOT B

$

$

Not available

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 116460

BOLT-STEERING LEVER

$89.99

$

Usually ships in 3-6 days

0

22

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

24

Toro 2411-33

BALLJOINT-RH (W/GROMMET)

$26.99

$

Usually ships in 3-6 days

0

25

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

26

Toro 94-6178

ROD - STEERING CONTROL

$16.99

$

Usually ships in 3-6 days

0

27

Toro 94-6254

LH Lever ASM
(Superseded to 94-6254-03)

$

$

Not available

28

Toro 94-6170

Bracket-Neutral
(Superseded to 94-6170-03)

$

$

Not available

29

Toro 94-6175

Steering Arm ASM
(Superseded to 94-6175-03)

$

$

Not available

30

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

32

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

34

Toro 3318-723

CATALOG - PARTS

$12.90

$

Usually ships in 3-6 days

0

35

Toro Pi74160

Packaging Instructions

$

$

Currently unavailable
