74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) STARTING SYSTEM Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

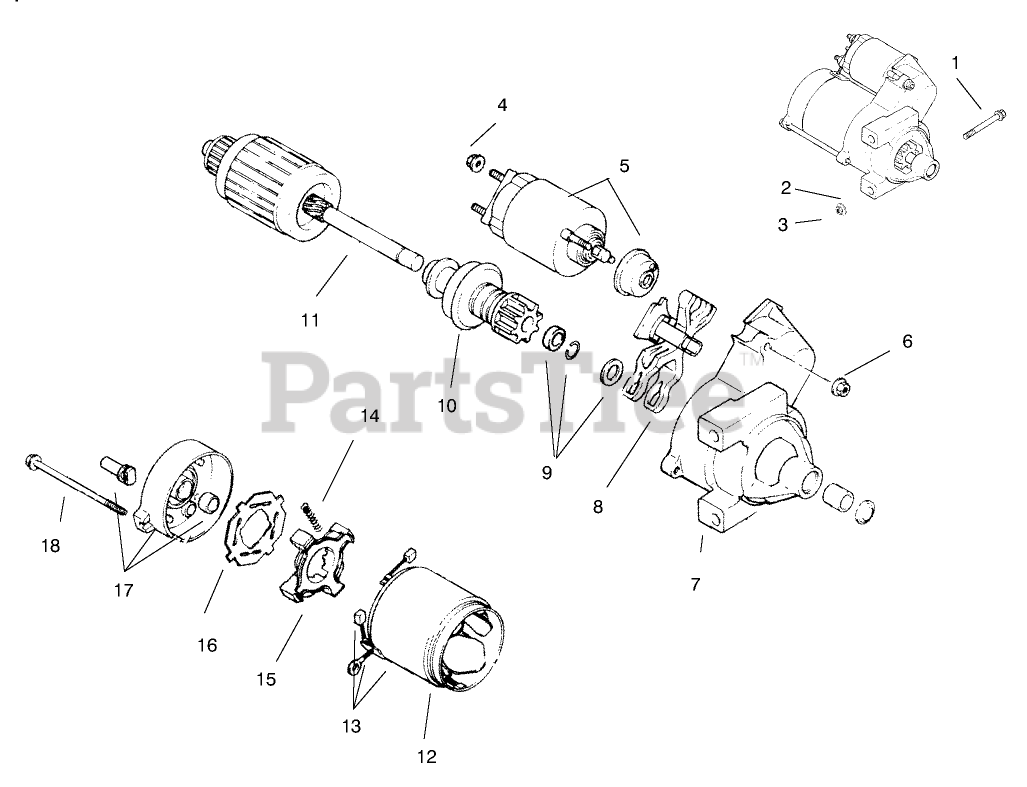

STARTING SYSTEM Parts Diagram

  • Title

$

$

Not available

2

1209803

Starter (Incl .Ref.#4-18)

$

$

Not available

3

Kohler M-0841080

Nut
(Superseded to M-841080)

$2.49

$

Usually ships in 2-5 days

0

4

5210009

Nut

$

$

Not available

5

5243502

Solenoid

$

$

Not available

6

5210010

Nut

$

$

Not available

7

1208102

Cap Drive End

$

$

Not available

8

1209010

Lever Starter Drive

$

$

Not available

9

2475584

Washer

$

$

Not available

10

1223901

Drive Pinion

$

$

Not available

11

1217003

Armature

$

$

Not available

12

1247101

Frame

$

$

Not available

13

5222101

Kit-Brush (Incl. Ref.# 14)

$

$

Not available

14

5208909

Spring Brush

$

$

Not available

15

5232303

Holder-Brush

$

$

Not available

16

5216801

Insulator

$

$

Not available

17

1230101

Cap-Commutator End

$

$

Not available

18

5221105

Bolt

$

$

Not available
