74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) OIL PAN/LUBRICATION Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

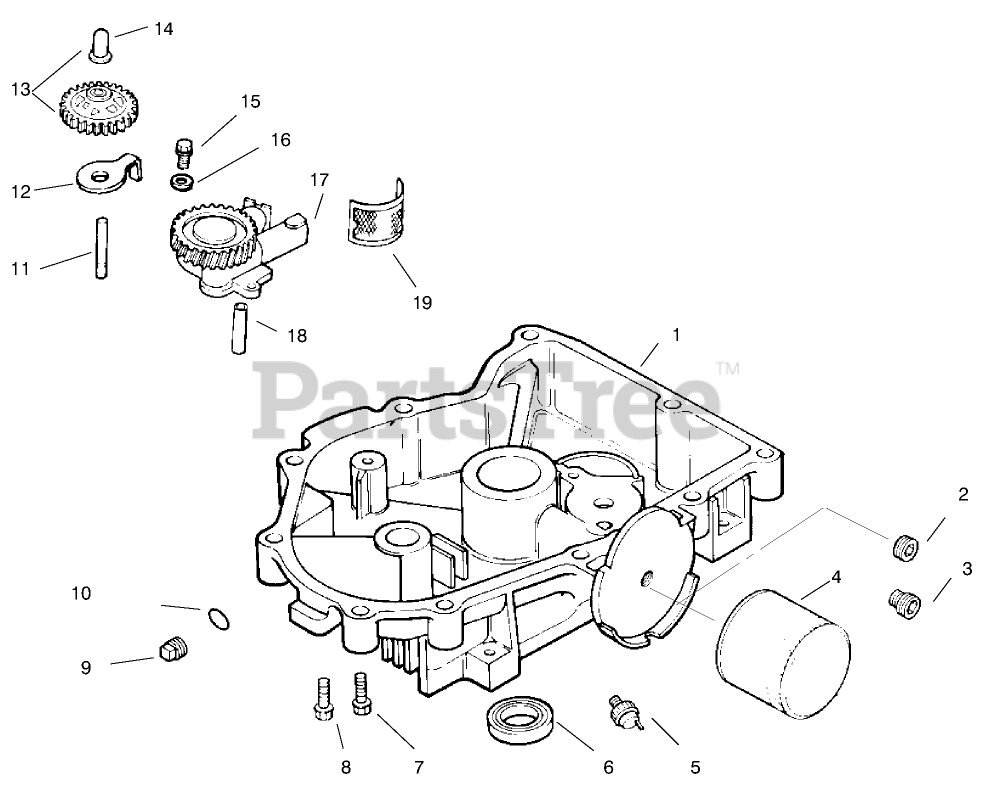

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

2419907

Pan Asm (Incl. Ref.# 11-14, & 17-19)

$

$

Not available

2

Kohler X-75-32

Plug-Hex
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

3

Kohler 24 136 01

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

4

Kohler 12 050 01

Filter-Oil
(Superseded to 12 050 01-S)

$13.99

$

In Stock, Qty 20+

0

5

5209905

Switch-Oil Pressure

$

$

Not available

6

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

$10.99

$

In Stock, Qty 20+

0

7

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

8

Kohler 24 086 17

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

9

5213902

Plug-Drain

$

$

Not available

10

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

$6.99

$

In Stock, only 1 left!

0

11

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

$4.49

$

In Stock, Qty 8

0

12

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

$2.49

$

In Stock, only 2 left!

0

13

Kohler 24 043 12

Kit-Governor Gear w/Pin (Incl. Ref.#14)
(Superseded to 24 043 12-S)

$68.99

$

In Stock, Qty 12

0

14

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

$3.49

$

In Stock, Qty 10

0

15

Kohler M-0645025

Screw
(Superseded to M-645025)

$2.49

$

In Stock, only 3 left!

0

16

Kohler M-0631005

Washer
(Superseded to M-631005)

$2.49

$

In Stock, only 2 left!

0

17

2439308

Oil Pump Asm (Incl. Ref.#18-19)

$

$

Not available

18

2412305

Tube-Oil Pickup

$

$

Not available

19

2516207

Screen-Oil

$

$

Not available

2511305

Decal-Oil Sentry

Note: Not illustrated

$

$

Not available
