74160 (Z 222) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) FUEL SYSTEM Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

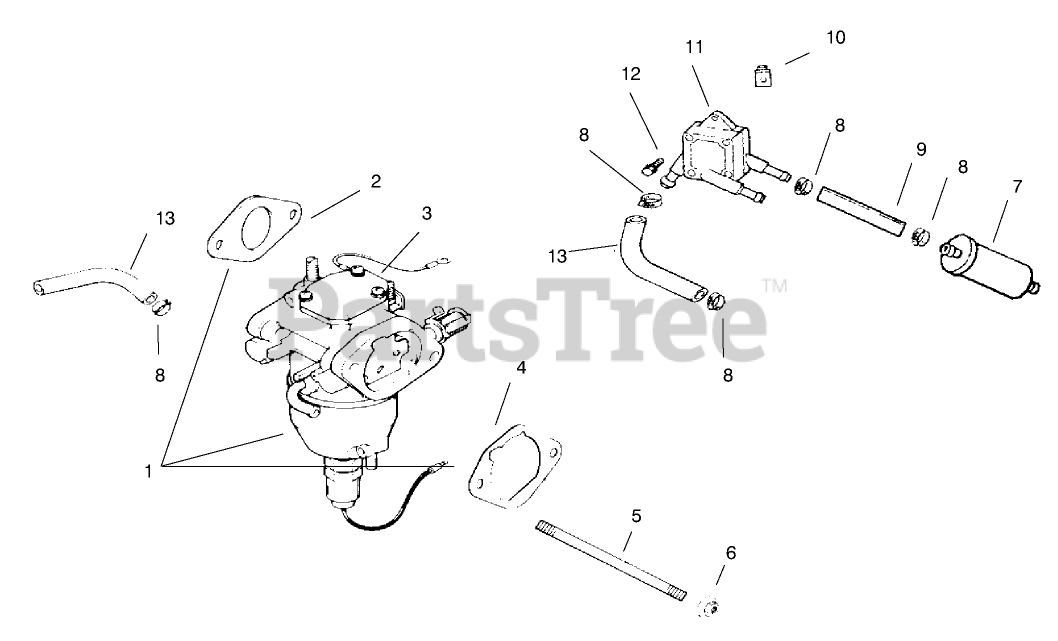

FUEL SYSTEM Parts Diagram

  • Title

1

Kohler 24 853 19

Kit-Carb INC2/4/15-42
(Superseded to 24 853 25-S)

$605.99

$

Usually ships in 2-5 days

0

2

2404115

Kit-Carburetor

$

$

Not available

3

Carburetor Asm

$

$

Not available

4

2404114

Gasket-A/C Base

$

$

Not available

5

Kohler M-0629095

Stud

$

$

Not available

6

Kohler M-0641060

Nut
(Superseded to M-641060)

$4.49

$

In Stock, Qty 11

0

7

2505003

Filter-Fuel

$

$

Not available

8

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

9

2535315

Line-Fuel

$

$

Not available

10

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 13

0

11

2439304

Pump-Fuel

$

$

Not available

12

2408612

Screw

$

$

Not available

13

2435303

Line-Fuel

$

$

Not available

2404115

Kit-Carburetor

$

$

Not available

2575718

Kit-Overhaul

$

$

Not available

2475719

Kit-Choke Repair

$

$

Not available

2475720

Kit-Gasket

$

$

Not available

2475722

Kit-Solenoid Replacement

$

$

Not available
