74145 (2000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) MOTION CONTROL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

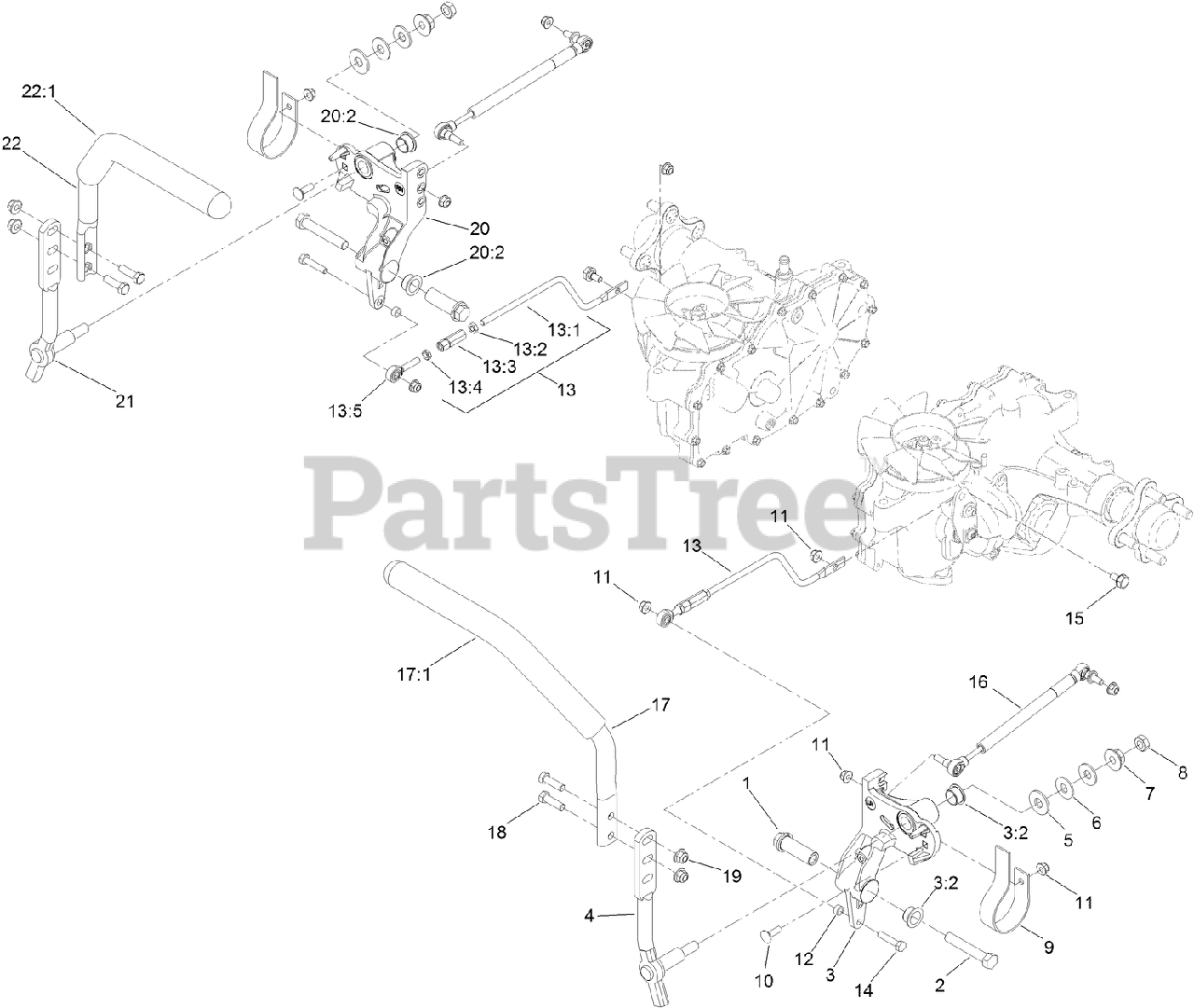

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 109-5891

HUB-THREADED

$14.99

$

In Stock, only 2 left!

0

2

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

3

Toro 116-0881

LH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

3:2

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

4

Toro 116-0040

LEVER-CONTROL MOTION, LH

$53.99

$

In Stock, only 1 left!

0

5

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 4 left!

0

7

Toro 32128-56

NUT-HF

$10.99

$

Usually ships in 3-6 days

0

8

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-5575

SPRING-LEAF

$15.99

$

Usually ships in 3-6 days

0

10

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

12

Toro 92-6998

SPACER-YOKE, RIGHT

$29.99

$

Usually ships in 3-6 days

0

13

Toro 119-2605

HYDRO CONTROL ROD ASM

$71.99

$

Usually ships in 3-6 days

0

13:1

Toro 119-2606

ROD-CONTROL, HYDRO

$14.99

$

Usually ships in 3-6 days

0

13:2

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

13:3

Toro 109-3728

NUT-ROD ADJUSTMENT

$45.99

$

Usually ships in 3-6 days

0

13:4

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

13:5

Toro 2411-53

BEARING-ROD END, LH

$37.99

$

In Stock, only 2 left!

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

16

Toro 116-0027

DAMPER-CONTROL, MOTION
(Superseded to 146-0859)

$92.99

$

In Stock, Qty 17

0

17

Toro 109-6590

LH STEERING HANDLE ASM
(Superseded to 135-4373)

$82.99

$

Usually ships in 3-6 days

0

17:1

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0

18

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 116-0880

RH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

20:2

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

21

Toro 116-0039

LEVER-CONTROL MOTION, RH

$53.99

$

Usually ships in 3-6 days

0

22

Toro 109-6589

RH STEERING HANDLE ASM
(Superseded to 135-4371)

$82.99

$

Usually ships in 3-6 days

0

22:1

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0
