74143 (2000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 316000001 - 316999999) (2016) SEAT MOUNTING ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

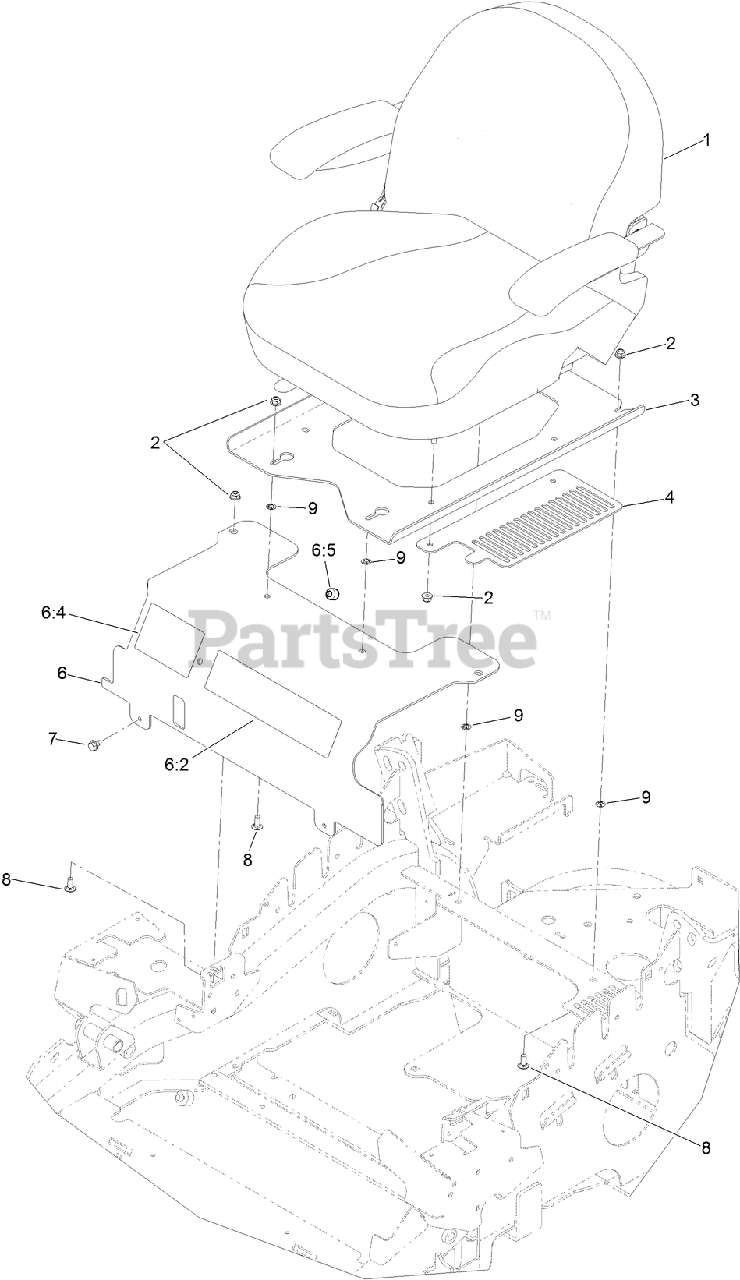

SEAT MOUNTING ASSEMBLY Parts Diagram

  • Title
1

Toro 127-9538

SEAT ASM

$959.99

$

Usually ships in 3-6 days

0

2

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 117-8615-03

PLATE-MOUNT, SEAT

$132.99

$

Usually ships in 3-6 days

0

4

Toro 117-8618-03

PLATE-COVER, FAN

$37.99

$

Usually ships in 3-6 days

0

6

Toro 119-2597

SEAT MOUNT PANEL ASM

$267.99

$

Usually ships in 3-6 days

0

6:2

$22.99

$

In Stock, Qty 8

0

6:4

Toro 127-0325

DECAL-SERVICE AID

$14.99

$

Usually ships in 3-6 days

0

6:5

Toro 120-7893

BUMPER-GROMMET

$5.49

$

Usually ships in 3-6 days

0

7

Toro 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

8

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0
